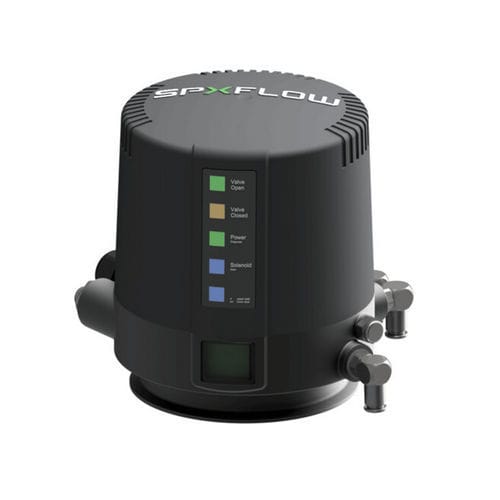

The CU4plus utilizes the latest in advanced APV control unit technology to offer the optimum solution to control and monitor sanitary valves. The control units provide increased process accuracy and safety, easy operation, and reliable diagnostic tools for predictive maintenance. The CU4plus is available with 24VDC Direct Connect, IO-Link, as well as AS-I bus communication protocols.

Advantages

Highly accurate, contact-free valve stem measuring
Teach-In function for quick and easy feedback adjustment
Ultra bright LEDs for clear indication of valve position, power, and solenoid activation
Manual override solenoids and adjustment screw to throttle actuator air flow
Ability to retrofit and upgrade on existing valves
Toolbox software for advanced control, monitoring, and service

CU4plus IO-Link - Additional Advantages

Interoperable flexibility leads to ease of installation and use
Real time diagnostics improves uptime
Unique air pressure monitoring allows for quick maintenance response
Data centralized for a robust network and less downtime
Seat lift pulsation enhances CIP / sustainability

Parameter Name	Parameter Value
Applications	for valves safety
