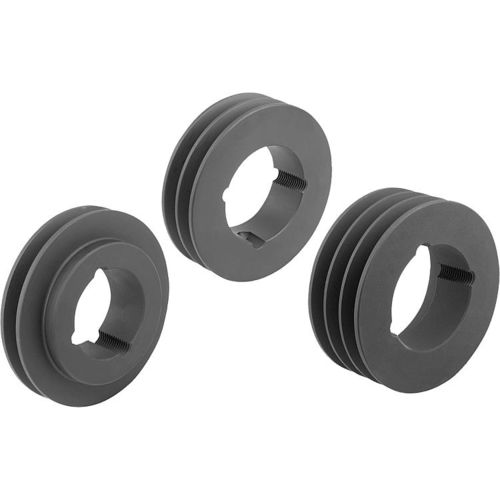

V-belt pulleys, grey cast iron for mounting with taper clamping bushes

Description

Material:
Grey cast iron EN-GJL-250.

Version:
Phosphated

Note:
V-belt pulleys for use with narrow V-belt DIN 2215 and V-belt DIN 7753.

The V-belt pulleys are based on DIN 2211 or DIN 2217. They have a conical bore for taper clamping bushes. The taper clamping bushes must be ordered separately and are available for various shaft diameters.

The V-belt pulleys are statically balanced according to ISO 1940 quality class G6,3.

The V-belt pulleys are designed for a maximum circumferential speed of 35 m/s.

Accessory:
Taper clamping bushes 23200.

Parameter Name	Parameter Value
Type	groove
Applications	V-belt
Other characteristics	cast iron with bore
