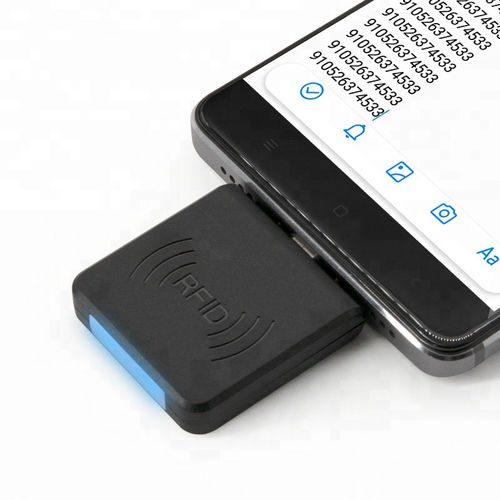

The HD-RD65 RFID tag reader is an elegant and easy to use device for identifying goods and individuals based on radio wave technology. The reader works with any smartphone that has a micro USB connector (Samsung, Nokia, Huawei, Xiaomi, etc.). The device can read tags with chips EM4100, TK4100, SMC4001, and the tag reading distance is up to 70 mm. Small dimensions of the device and low weight mean that it does not disturb during work.

Device installation

-Connect the reader to the phone's micro USB port. The operating system will automatically install the driver
-The operating system will display information that the installation was successful
-Equipment ready to work

Specification

-Material: ABS
-Reading method: automatic
-Read confirmation: light
-Interface: USB
-Weight [g]: 20
-Weight with packaging [g]: 50
-Device dimensions [mm]: 35 x 35 x 7
-Package dimensions [mm]: 70 x 70 x 20

Work specification

Read speed: <200ms
Time between reads: <0.5 sec
Reading distance [mm]: 0.5-80
Operating frequency: 125 kHz
Readable chip types: EM4100, SMC4001, EM4200, EM4305, T5577
Output format: 10-character decimal
Power: USB DC 5V
Working temperature [° C]: -10 to 70
Storage temperature [° C]: -20 to 80
Working humidity [: 0 to 90
Storage humidity [: 0 to 90

Parameter Name	Parameter Value
Connector type	USB
Frequency (Hz)	125000000 - 125000000
Detection distance	Min.: 0 mm (0 in)Max.: 70 mm (2.76 in)
