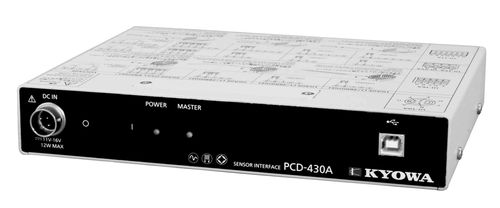

onnect the sensor interface to a PC via USB port. The PC will be a measuring instrument.
Up to 4 units can be stacked for measurement in 16 channels.
Features

●Input of strain and voltage can be selected for each channel
●Easy sensor connection using various types of input adapter (An input adapter is required for measurement.)
●Connects to PC using USB interface
●Measurement using 1 unit with 4 channels, up to a maximum of 4 units with 16 channels possible (Allowed combination of the PCD-400A)
●4 units simultaneous sampling using the connection connector set ST-1A (optional accessory)
●Dynamic data acquisition software (DCS-100A) standard accessory supporting
　Windows Vista, and Windows 7,Windows 8/8.1(Japanese/English, 32/64 bit)
●TEDS compatible (UI-10A, UI-11A)
●Input adapter
　Input adapter for strain gage transducer UI-10A (TEDS compatible)
　Input adapter for strain gage UI-11A (TEDS compatible)
　Input adapter for strain gage with operating lever UI-15A
　One-touch lock type input adapter for strain gage UI-16A
　One-touch type input adapter UI-55A
　Voltage input adapter UI-30A
●Compact, lightweight
●Analysis of data using the analysis software (optional accessory) (DAS-200A) is possible.

Parameter Name	Parameter Value
Bus	USB
