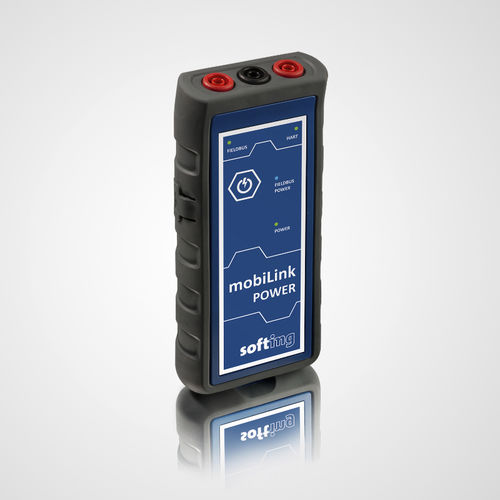

Commissioning & maintenance interface with integrated power supply for field devices

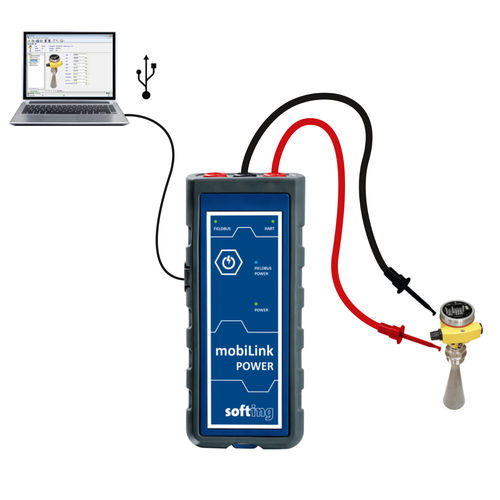

mobiLink power enables a direct connection to the field device without it having to be located within a functioning bus infrastructure. The integrated power supply eliminates the need for additional components such as external power supply and terminating resistors for commissioning and maintenance of the field devices.
Overview
Single interface for the major Process Automation protocols
• - HART Master, Foundation Fieldbus Host and PROFIBUS PA Master included in one device
• - Parametrization and configuration of field devices
• - Diagnostics and condition monitoring
Provides the power supply for the field devices
• - Eliminates the need for an additional power supply and power conditioner for workbench applications
Support of FDI, FDT frame applications and major engineering tools (from January 2021)
• - PACTware FDT frame application and HART communication DTM included
• - Communication DTM for Foundation Fieldbus and PROFIBUS PA (optional)
• - Foundation Fieldbus configuration tool (optional)
• - Application Program Interface for integration into engineering systems
Unlimited flexibility in use
• - mobilink Power draws power from the connected computer via USB
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Options |
|
| Other characteristics |
|
