Digital View is developing a range of solutions for E Ink epaper display developers. Shown here is the driver for the 32" and 42" panels, further down the page is also reference to IP-65 enclosure solutions. We will also be announcing a 13.3" panel driver board (the EPM-050) and 13.3" bonded panels suitable for outdoor use.

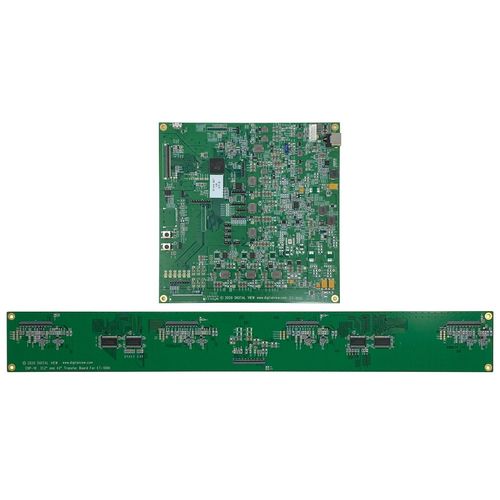

The Digital View EPM-100 interface board is designed for E Ink 32" and 42" bi-stable reflective display panels. This low power interface accepts an image transferred over USB from a source media player such as a Raspberry Pi or Android PC. E Ink based displays are ideal for public signage, the significant benefits include the high visibility in bright environments as well as the ability to operate from solar power due to the very low power consumption.

USB input interface board set for E Ink 32" and 42" reflective panels

• Inputs: Micro USB
• Panel support: E Ink 32" & 42"
• Power: 12V DC

• Part number: 32" kit: 546023910-3
- EPM-100 board
- EPD-10 board
- FFC cables (5pcs)

• Part number: 42" kit: 546023900-3
- EPM-100 board
- EPD-10 board
- FFC cables (3pcs)

Parameter Name	Parameter Value
Bus	USB
Applications	industrial
