ADROIT is a range of high performance, robust pressure measurement devices. Combining the best mechanical properties of micromachined silicon in a fully welded 316L stainless steel body with the latest digital processing capability to offer levels of accuracy, previously unavailable in a device of this type.
By using digital signal processing, the highest levels of performance over temperature are achieved. The final stage of processing converts the signal back into a conventional analogue output for easy interfacing to existing infrastructure. Fast ASIC technology ensures response times around 1 ms and fast switch on for pulse power operation. The digital processing also enables the replacement of mechanical adjustment to potentiometers with automatic calibration adjustment using the ADROIT-Interface and ADROIT6000 App.

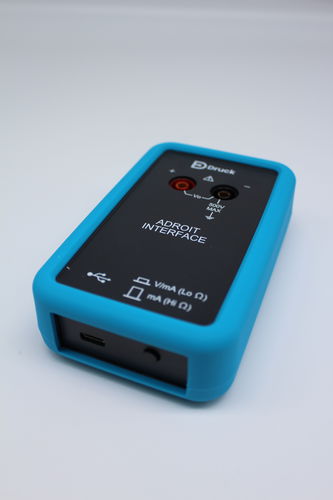

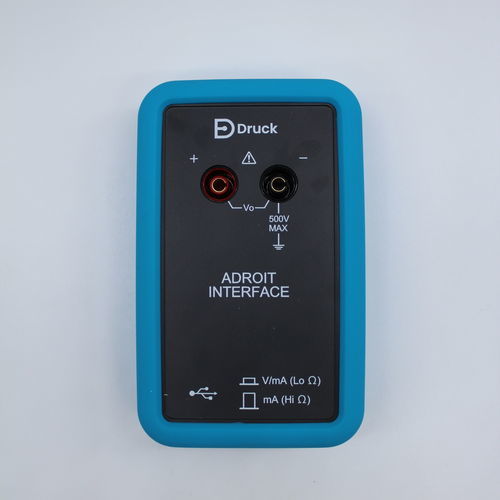

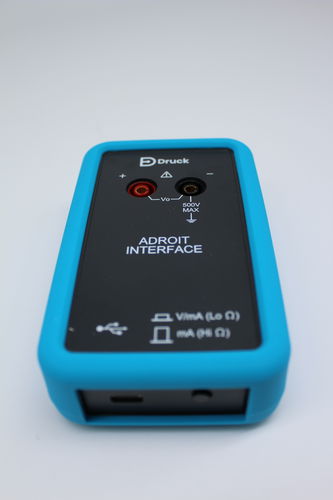

The ADROIT-Interface is a hardware device which enables communication via USB to the sensor utilising one wire communication along the sensor power wires. The ADROIT6000 App runs on either a Windows based PC or ANDROID mobile devices and provides a number of options to make adjustment to the ADROIT series sensors.

Process
The ADROIT-Interface is available to order from Druck.
The ADROIT6000 app is available free of charge as a download from the ADROIT webpage on Druck.com. For Android devices the ADROIT6000 app can be found on play store by searching for ADROIT6000.
The ADROIT6000 app and ADROIT-Interface works with the full ADROIT range as well as with PMP4200 motorsport sensors.

Parameter Name	Parameter Value
Options	USB
Other characteristics	compact analog mobile
