Specifications:
Ports: 1xCAN; 1xUSB
CAN Baudrate Baud Rate From 10K up to 1M bps
Isolation 2000V DC
CAN Connector Removable Screw Terminal
Power supply 8…19V AC; 8…35V DC
EMI Compliance EN 61000-6-2;FCC part 15 of Class A
Operating temperature -40°C/+85°C (-40°F/+185°F)

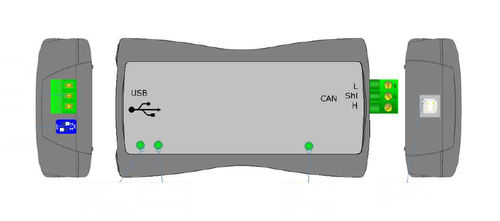

Dimensions 119x27x65(DxWxH)
Weight 200g approx
Mechanical fixing Device table

ORDER CODE HD67390-U-D1

Parameter Name	Parameter Value
Bus	USB, CAN
Other characteristics	DIN rail
