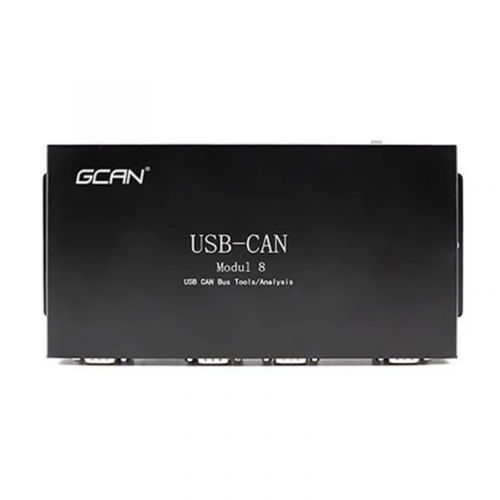

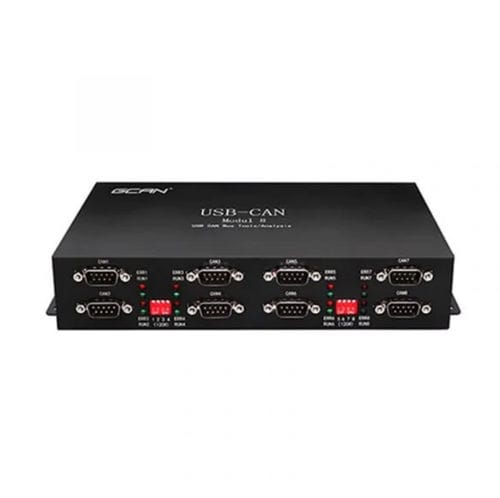

USBCAN-Modul 8 is a high-performance CAN-Bus communication interface card integrated with 8-channel CAN interface.This model CAN card is compatible with the full speed specification of USB2.0 Bus, using the USBCAN-Modul8 high-performance CAN interface card, PC CAN be quickly connected to the CAN-Bus network through USB interface.
USBCAN-Modul 8 high performance CAN interface card supportWindows XP/Win7/Win10 Linux and other operating systems,we provide a complete application demonstration code (VC VB Net Delphi Labview C++Builder), for the convenience of users for application development.

Specifications
Physical
Size(LxWxH) - 234*121*44
Operating temperature - -40°C~85°C
The shell material - metal
Interface form - DB9（CiA)
CAN channel number - 8
Electrical
Voltage supply - External 24V power supply
Working voltage - 24V
Isolation voltage - Magnetic isolation of 1500V
System
Support system - Windows 2000/2003 XP /7/8/10/ E.g.
development environment - VC VB C C+ C++ C++Builder NET Labwindows Delphi LabVIEW
CAN bus characteristics
Baud rate - 5Kbps—-1Mbps
Transfer speed - Send up to 8000 frames/s and receive up to 14000 frames/s
Execution standard - Support CAN 2.0A CAN2.0B ISO/DIS 1188-1/2/3
USB bus characteristics
Execution standard - Compliant with USB2.0 full speed Compatible with USB1.1 Spupport USB3.0
Software Functions

1. Transmit/Receive data
Transmitting and receiving is the basic function of ECAN Tools, in this interface, users can directly see the received CAN data, and send the data to CAN bus.

Parameter Name	Parameter Value
Bus	USB, CAN Bus, CAN
Number of ports	8 ports
Other characteristics	data transmission
