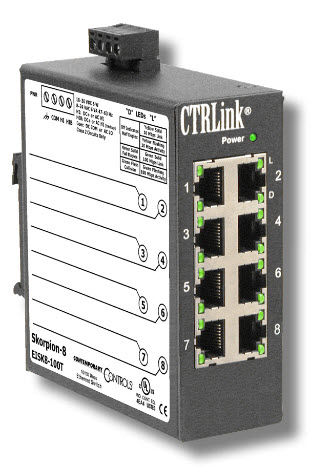

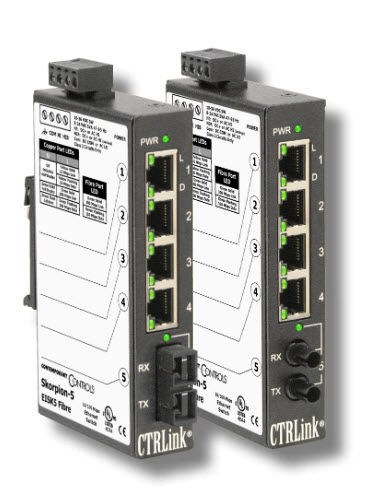

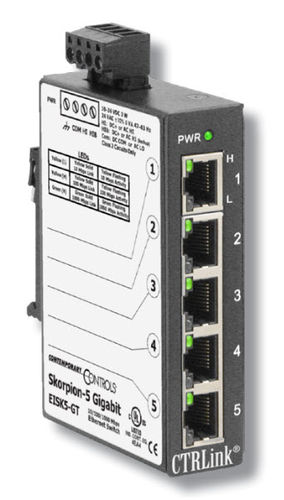

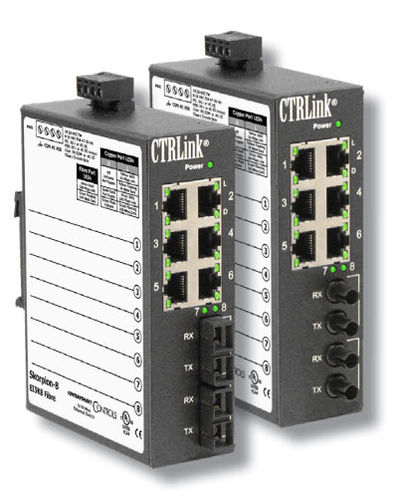

Product DetailsFor control panels where DIN-rail space is at a premium, the Skorpion series of plug-and-play (unmanaged) Ethernet switches with widths as little as one inch (26 mm) is the answer.Housed in a rugged metal enclosure with a metal DIN-rail clip, the Skorpion series includes models with 5, 8 and 16 ports. Some models provide one or two ports of either single-mode or multimode fibre optics with either SC or ST connectors.No configuration is necessary. All copper ports automatically configure their data rate and duplex using the auto-negotiation protocol. Depending on the capability of the link partner, communications is established at either 10 Mbps or 100 Mbps, and in the case of the GT models at 1000 Mbps, and at either half- or full-duplex. Each port will adapt to either a straight-through or crossover cable by using the Auto-MDIX protocol.Fibre ports are fixed at 100 Mbps full-duplex for the highest performance. Multimode cable lengths cannot exceed 2 km and single-mode lengths cannot exceed 15 km without a special order. Fibre optics is ideal for inter-building cabling in a campus environment.

Parameter Name	Parameter Value
Type	unmanaged
Number of ports	16 ports
Mounting	DIN rail
Other characteristics	compact rugged single-mode
