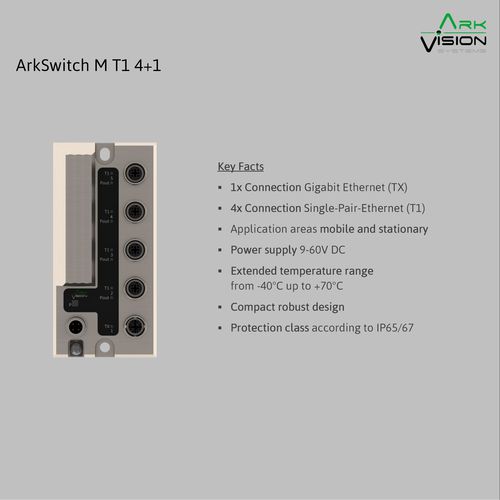

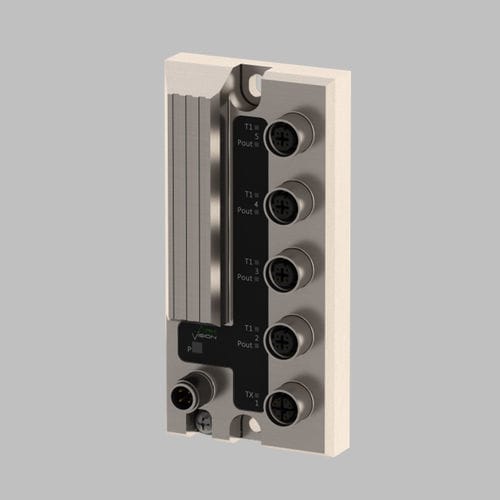

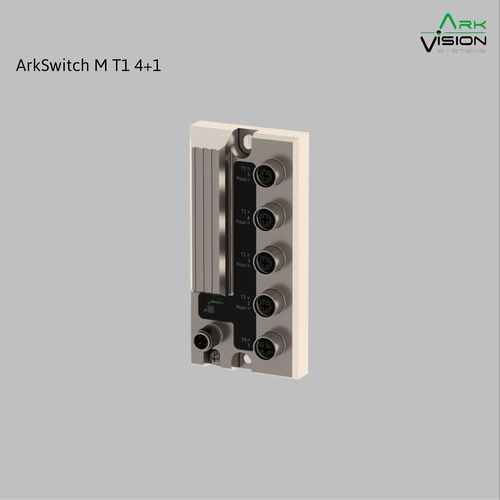

Robust! Flexible! Compact! Maximum efficiency! With our "ArkSwitch T1 4+1", we make it easy for you to network with up to 4 digital 100Base T1 (BroadRreach) cameras in a plug and play way. You don't have to worry about the power supply of the cameras. This is done by the Ark Switch. You can set up your network within minutes and achieve maximum efficiency and security for your applications in the shortest possible time.

Key facts:
1x Output Ethernet (TX)
4x Input Single-Pair-Ethernet (T1)
Application areas mobile and stationary
Power supply 9-60V DC (M12-A coded)
Extended temperature range from -40°C to +70°C
Compact robust design
Protection class according to IP65/67

Parameter Name	Parameter Value
Type	unmanaged
Number of ports	5 ports
Network	gigabit Ethernet
Mounting	wall-mount built-in panel-mount chassis
Other characteristics	PoE rugged compact modular high-power IP67 BroadR-Reach
Applications	industrial for harsh environments outdoor for railway applications for railway vehicles IoT
