About

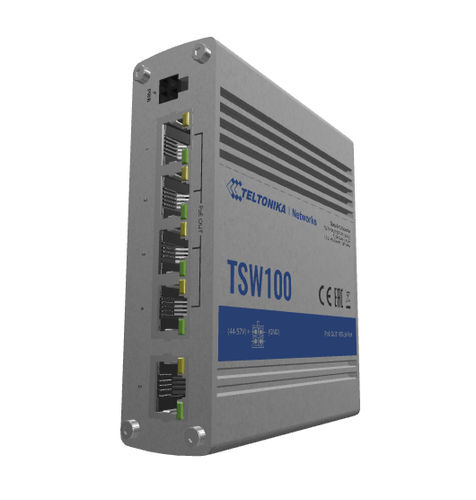

TSW100 is the first industrial unmanaged switch from Teltonika Networks.
Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at Power-over-Ethernet standards (PoE).
Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power.
It has 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution.
Ideal for professional high bandwidth applications to provide both: reliable data connection and power supply.
POE
4 x PoE ports with 802.3af and 802.3at support
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
POWER BUDGET
Total power budget at PSE up to 120 W
ETHERNET
5 x Gigabit Ethernet with speeds up to 1000 Mbps
PLUG-N-PLAY
No additional configuration needed
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
unmanaged
|
| Number of ports |
5 ports
|
| Network |
gigabit Ethernet
|
| Mounting |
|
| Other characteristics |
|
| Applications |
industrial
|
