Product Feature:
MS100T
10/100 Mbps self-adaption，（Auto-MDI/MDI-X）
Supports IEEE 802.3 for 10BaseT
Supports IEEE 802.3u for 100BaseT and 100BaseFX
Supports IEEE 802.3xfor flow control
Supports broadcast storm protection
Supports working temperature: -40~85℃
5/8/16 ports unmanaged Ethernet Switches DIN-rail
MS100G
10/100/1000 Mbps self-adaption，（Auto-MDI/MDI-X）
Supports IEEE 802.3 for 10BaseT
Supports IEEE 802.3u for 100BaseT(X)
Supports IEEE 802.3z for 1000BaseT
Supports IEEE 802.3xfor Flow Control
Supports broadcast storm protection
Supports working temperature: -40~85℃
5/8/16 ports unmanaged Ethernet Switches DIN-rail

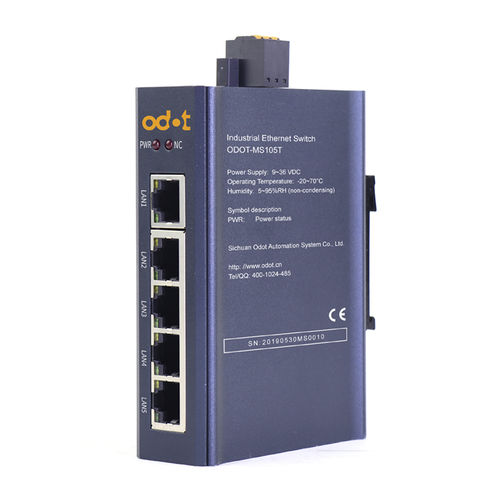

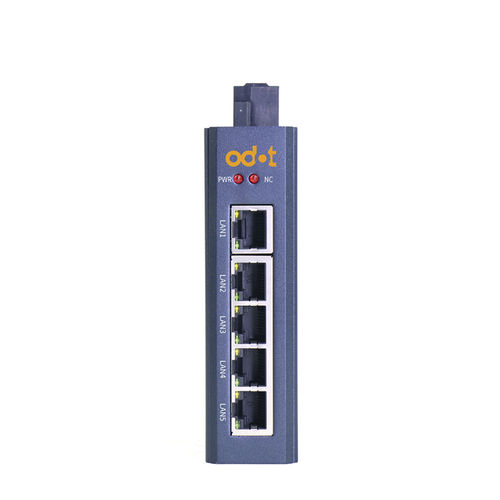

ODOT-MS105T: 5-port 10/100Mbps，35mm DIN-rail

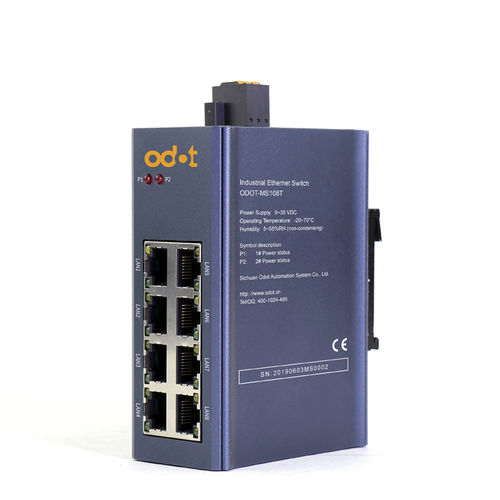

ODOT-MS108T: 8-port 10/100Mbps，35mm DIN-rail
ODOT-MS116T: 16-port 10/100Mbps，35mm DIN-rail
ODOT-MS105G: 5-port 10/100/1000Mbps，35mm DIN-rail
ODOT-MS108G: 8-port 10/100/1000Mbps，35mm DIN-rail
ODOT-MS100T series is a basic plug and play industrial-grade unmanaged Ethernet switch, euqipped with 5/8/16 10/100 MB ports, all ports supports IEEE802.3/802.3u/802.3x, supports broadcast storm protection, adapt to various industrial environment, protection grade is IP20. The product adopts metal sheel and supports 35 mm DIN-rail installation.
ODOT-MS100T series is a basic plug and play industrial-grade unmanaged Ethernet switch, euqipped with 5/8/16 10/100/1000 MB ports, all ports supports IEEE802.3/802.3u/802.3x, supports broadcast storm protection, adapt to various industrial environment, protection grade is IP20. The product adopts metal sheel and supports 35 mm DIN-rail installation.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
unmanaged
|
| Number of ports |
16 ports
|
| Mounting |
DIN rail
|
| Other characteristics |
RJ45
|
| Applications |
|
