About

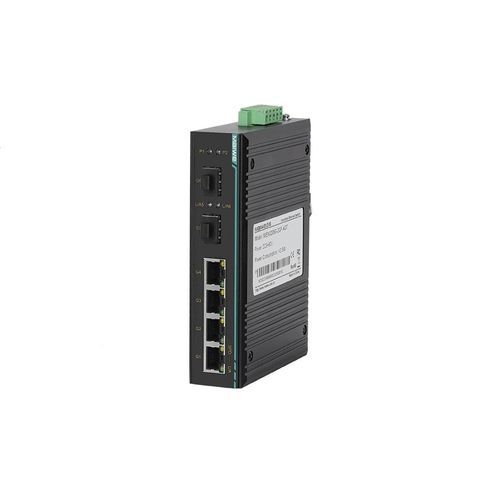

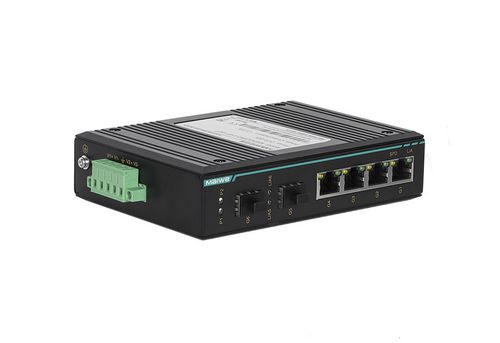

MIEN3206G is a high-performance unmanaged industrial Ethernet switch with 2 Gigabit FX ports and 4 Gigabit TX ports, all support 10/100/1000M auto-adaptive, which is suitable for applications with large bandwidth requirements. It has a power failure alarm output function, which is convenient for field engineers to find and handle faults in time. MIEN3206G series can be operated at wide temperatures range from -40 to 85°C, and its IP40 casing house satisfies any harsh industrial environment.
Features and Benefits
-10/100/1000Base-T Self-adaptive(full/half duplex), Automatic MDI/MDI-X Connection
-Support Power-down Status Reply Alarm Output.
-CompactIP40Rated Casing House with Fanless Design
-Industrial Grade Power Supply with Anti-revise/Overcurrent/Overvoltage/EMC Protection
-Lightning Protection Standard 10/700us: CM 6kV-150A and DM 2kV-50A
--40°C ~85°C Operating Temperature
-Wide-Ranging Redundant Power Design
-Satisfy Harsh Industrial Environment
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
unmanaged
|
| Number of ports |
6 ports
|
| Network |
|
| Mounting |
|
| Other characteristics |
|
| Applications |
|
