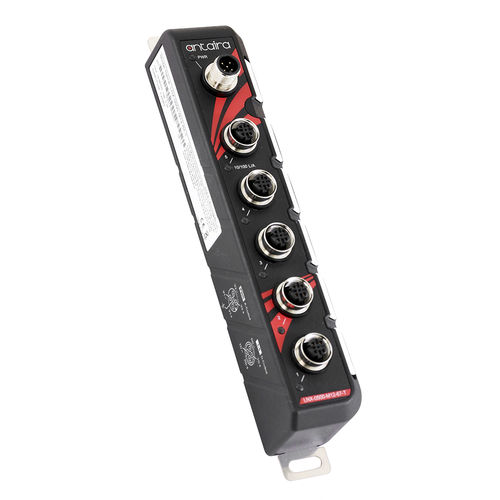

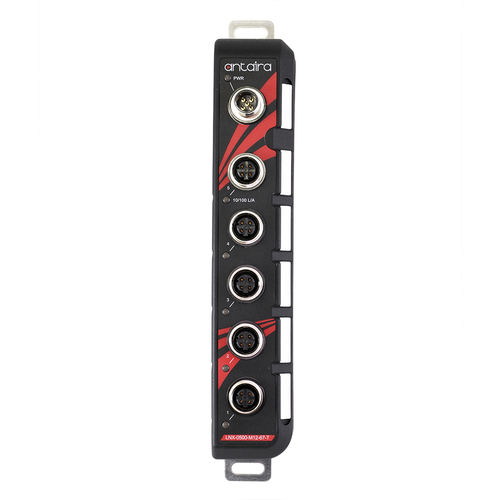

Antaira Technologies’ LNX-0500-M12-67 series is a 5-port 10/100Tx M12 IP67 industrial switch that meets the highreliability requirements demanded by industrial applications. The LNX-0500-M12-67 series features a wide operating temperature of -10° to 70°C in the standard model and -40° to 75°C in the extended temperature model which allows this device to be used in various industrial environments. Its M12 connectors ensure a tight, robust connection and guarantees reliable operation in applications that are subject to high vibration and shock in environments containing dust, liquid, or laden with gas.

Features

5*10/100Tx Fast Ethernet
M12 (A-coded) connector with IP67 Rated Protection
IP67 Rugged Plastic Case Design
M12 FE Port Support Auto MDI / MDI-X Function
Auto Negotiation Speed, Half / Full Duplex
Store-and-Forward Switching Architecture
Redundant Power Input: 12~48VDC
Power Polarity Reverse Protection
Overload Current Protection

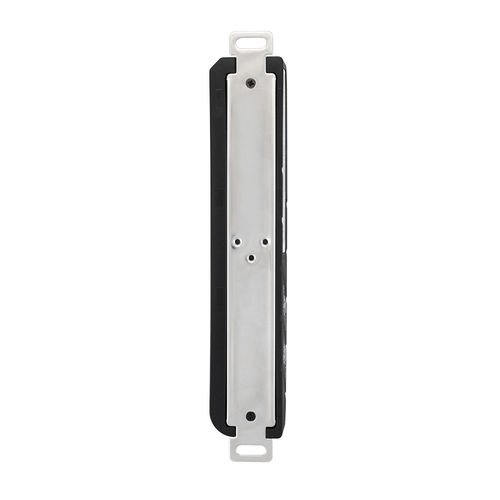

DIN-Rail or Wall Mountable
5-Year Warranty

Package Content

1 - DIN-Rail kit with screws
1 - LNX-0500-M12-67-T
1 - Quick Installation Guide
6 - M12 protective caps
6 - Port labels

Parameter Name	Parameter Value
Type	unmanaged
Number of ports	5 ports
Mounting	DIN rail standard wall-mount
Other characteristics	rugged IP67
Applications	industrial
