About

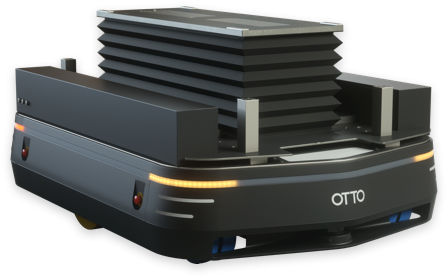

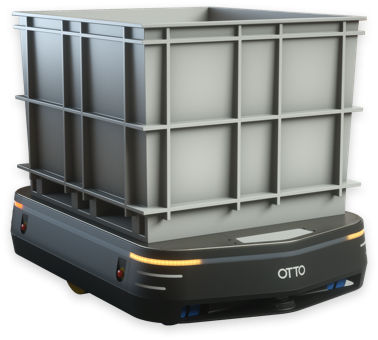

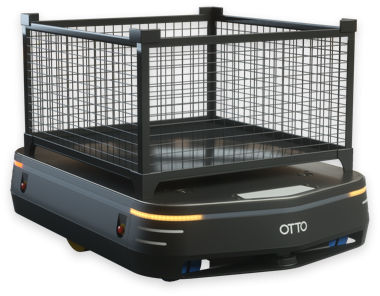

OTTO™ 1500 is a heavy duty self-driving vehicle designed to move pallets, racks, and other large payloads through dynamic production environments.

Key Specifications
OTTO 1500 navigates spaces just like a person does. It maintains a map of the space in its memory and uses visual reference points to always know its position. No guides, infrastructure, or predefined paths required.
Size1810 x 1190 x 351 mm
Speed2 m/s
Connectivity2.4GHz & 5GHz WiFi
NavigationFull Autonomy

Main Components
1- Safety Rated Lidar
Gracefully drives around obstacles and find new routes without getting stuck.

2- 360º Indicator Lighting
Displays familiar turn signals, brake lights, vehicle status lighting, and audible tones so you know where OTTO is going.

3- Configurable Payload Interface
Carries payloads using a standard OTTO attachment, or has the flexibility to create your own using fixed mounting points and standard power and communication ports.

4- Tough and Sturdy Welded Frame
Provides strong and stable movement with a high-strength welded steel frame on pivoting drive and support wheels.



PARAMETERS

Parameter Name Parameter Value
Applications
  • for unloading
  • for loading
Specifications
  • electric
  • for heavy loads

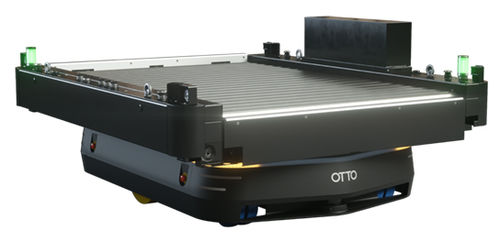

  • with motorized conveyor
Load (kg)
1500 - 1500
