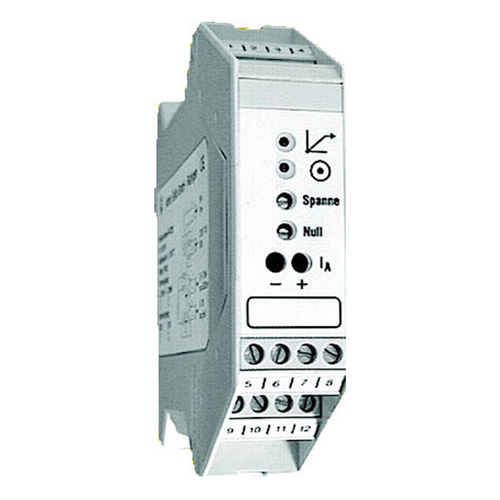

SUPPY UNIT and SUPPLY CONVERTER

• Converter to adapt various standard signals
• Supply voltage for two-wire transmitter
• Plastic housing for mounting on 35 mm standard mounting rail according to EN50022

For conversion of standard signals. Incorporated supply voltage for supply of a two-wire measuring transmitter. Output signals are both a voltage 0…10 V and a current signal 0/4…20 mA.

Both output signals are related to their common negative pole.

TECHNICAL SPECIFICATIONS:

Operating mode: Measurement mode
Entrance: 0 / 0.2 … 1V, 0/2 … 10V, 0/4 … 20mA
Supply voltage: Approx. 18 Vdc, unstabilized, max. 25 mA
Settings: Measuring range adjustable via trimmer

ACCURACY / ERROR LIMIT:

Tolerance: ± 0,2 %
Temperature drift: ± 0,2 % / 10 K

Parameter Name	Parameter Value
Signal type	universal
Associated function	transmitter
Other characteristics	DIN rail
