Signal Converter AC supply
90-264VAC
Selectable Input & Output

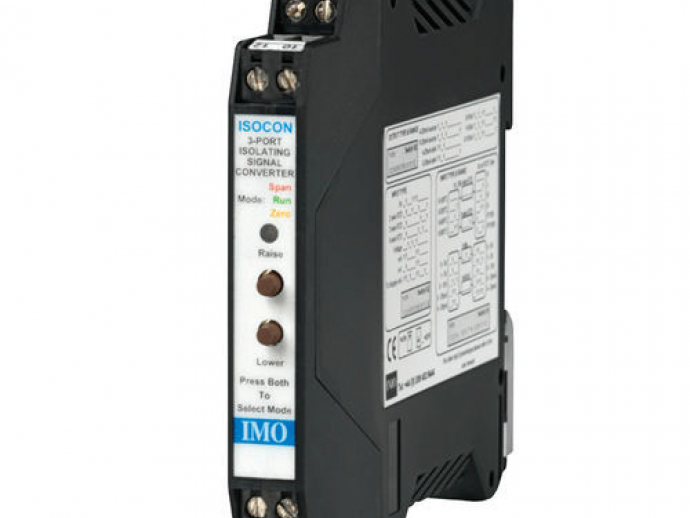

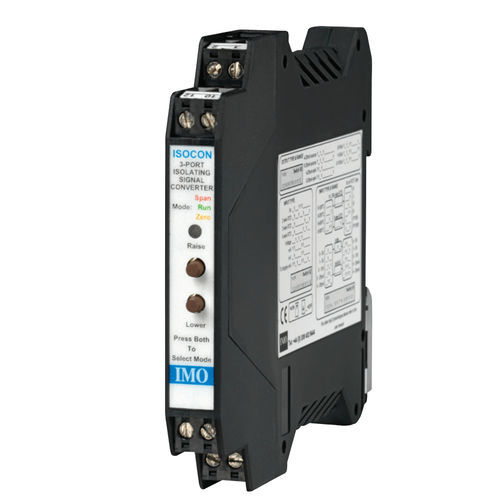

The ISOCON Isolating Signal Converter can accept a wide range of inputs including 4-20mA, thermocouple, RTD and voltage signals. The units produce a high level DC output of either voltage or current

Key Features
• Universal Input/Output - User Selectable
• Full 3-Port Isolation
• Wide Range AC or DC Supply
• Isolated Transmitter Supply
• Very High Accuracy, Low Cost
• Only 12.5mm wide on DIN Rail

Full 3 port isolation is standard as is an isolated transmitter supply which can be used to power any standard 2-wire 4-20mA transmitter. The input type and range can be user selected using simple DIL switches inside the unit. All RTD and thermocouple inputs can by fully linearised. Noninteractive zero and span controls make adjustment of the unit quick and simple.

Other features include optional inversion of input signal an optional second analogue output (see DUALCON technical datasheet) and an optional Relay alarm output. The unit is supplied with two power supply options either wide ranging AC or DC. The AC version operates from any supply from 90V to 264VAC and the DC version operates from 12V to32VAC and 12V to 36VDC. For specials such as custom linearisation etc. please contact IMO.

Parameter Name	Parameter Value
Signal type	universal
Associated function	transmitter
Other characteristics	DIN rail
