UNIVERSAL INPUT
TWO ON/OFF OUTPUTS
3-DIGIT LED INDICATOR
AC/DC POWER SUPPLY
COLD JUNCTION COMPENSATION
SELF-TESTING AND SELF-CALIBRATION
12 or 24 VDC AUXILIARY POWER SUPPLY
INTRODUCTION

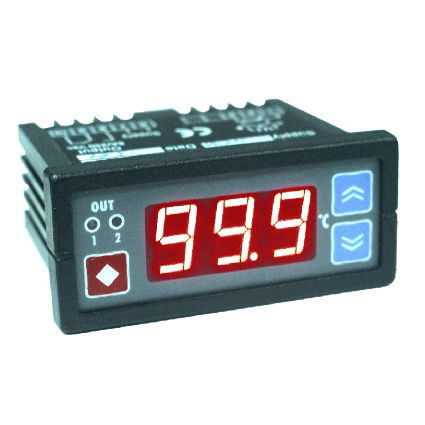

Indumart DIS12 ON/OFF programmable
controllers are microprocessor-based and can
accept a wide range of analogue inputs.
Other important features of the DIS12 controller
are its small size, two ON/OFF outputs for control,
a built-in circuit for self-calibration and self-
testing, manual measurement offset setting,
manual software compensation of line resistance
(RTD) and cold junction compensation for
thermocouples.
The value of the input to the DIS12 is indicated on
a 3-digit display and the status of outputs is shown
by the two LEDs.
Configuration of the DIS12 controller can be
performed via its front panel keys. The controller
can be configured for its input type, range,
resolution, offset value, alarm set points and
output direction and hysteresis

Parameter Name	Parameter Value
Measured value	universal, status, DC, AC, power
Display	3-digit LED
Type	panel
Other characteristics	programmable
