Compact dimensions

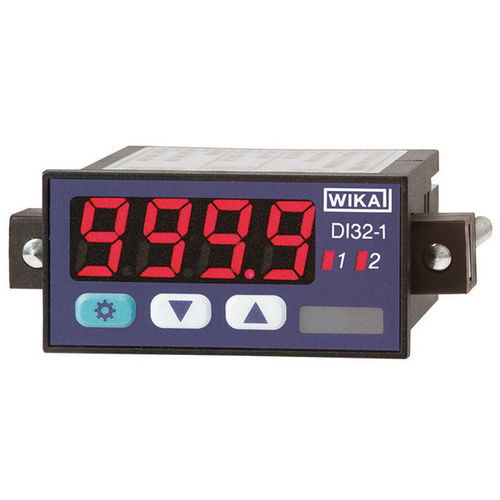

The model DI32-1 digital indicator, due to its compact dimensions, is particularly suited to applications with limited mounting space.
For the widest range of input signals
It features a multi-function input with 23 different input configurations. The appropriate input signal can be selected through the terminal assignment and entering the corresponding parameters into the instrument configuration. Thus, the instrument can be used for the display of measured values from transmitters with current and voltage signals as well as those from resistance thermometers and thermocouples. Furthermore, it is possible to use the indicator for the measurement of frequency and rotational speed and also as an up or down counter.
Applications
Machine building and plant construction
Machine tools
Test benches
General industrial applications
Special Features
Multi-function input for standard signals, resistance thermometers and thermocouples (23 calibrated input configurations)
Compact design: 48 x 24 x 52 mm (67 mm with plug-in terminal)
2 transistor switching outputs, output type freely selectable
MIN/MAX memory and tare function
Linearisation with up to 5 programmable points possible

Parameter Name	Parameter Value
Measured value	universal
Display	digital
Type	panel-mount plug-in
Other characteristics	programmable compact
Applications	for thermocouples transmitter min/max
