Live irradiance display and logging
Modbus® and analog instruments
Panel temperature sensor input
kWh energy pulse counter
Power and configure Smart sensors
Comparison mode for testing

METEON 2.0 Data Logger

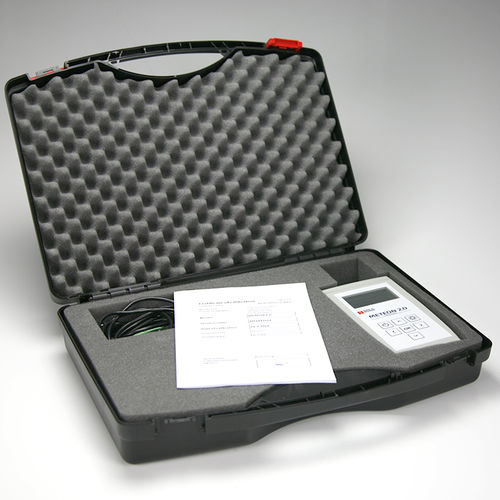

The METEON 2.0 is a compact handheld display and data logger optimized for PV related solar radiation measurement. It comes in a rugged carrying case that also offers room for a pyranometer and a cable. It accepts simultaneously up to 5 Smart and one analog Kipp & Zonen radiometers plus a Mencke & Tegtmeyer PV panel temperature sensor and also has a S0 input for kWh meter pulses.

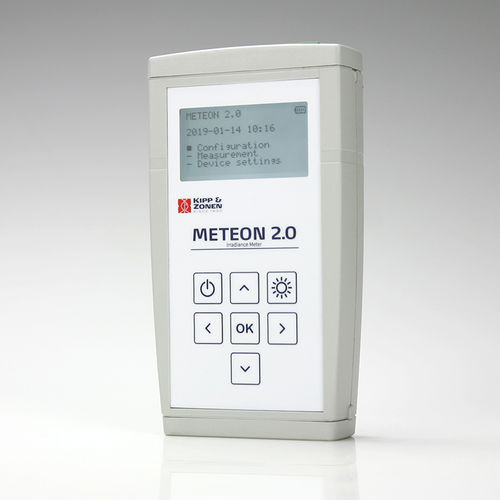

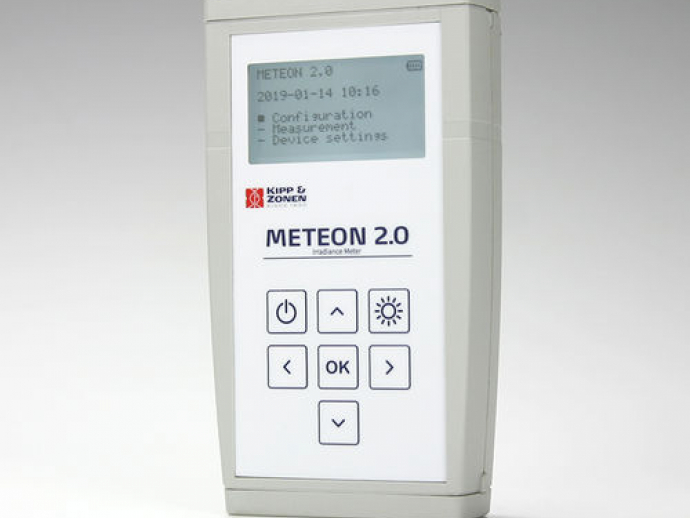

The large 8 x 22 character display is readable in full sunlight and has a backlight for darker conditions. The keypad with 7 buttons can be used to navigate through the different menus. When using the USB connection the METEON 2.0 can be set in transparent mode to act as a universal RS-485 interface for the connected Modbus® sensors.

5 x AA internal batteries provide the METEON 2.0 and connected Smart radiometers with power and there is also a connection for external DC power. The M&T temperature sensor must be used with an external 12 VDC power supply. METEON 2.0 can measure, display and log data from up to 8 devices. Depending on the number of instruments connected and the logging interval selected, it can store weeks of data.

Comparison of pyranometers is possible with one as the reference instrument and the other as the device under test (DUT). Log files are transferred to a computer via the USB interface and the data can be visualized and/or exported as a csv file with the free METEON 2.0 software.

Parameter Name	Parameter Value
Measured quantity	temperature, pulse, universal, energy
Connector type	USB, RS-485
Display	with LCD display
Other characteristics	compact rugged
