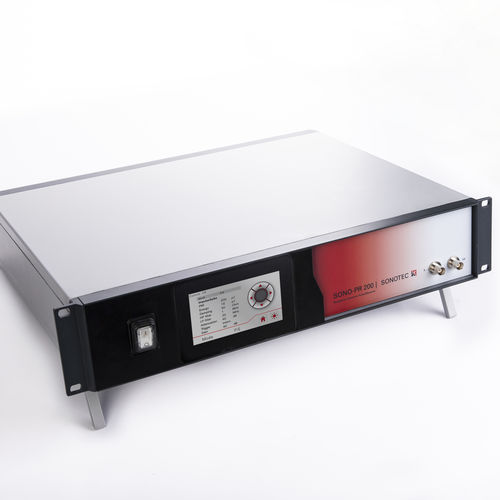

SONO-PR 200
BROADBAND ULTRASONIC PULSER-RECEIVER

Advantages:

- Very high bandwidth
- Large quantity of filters
- Extremly low noise
- Powerful spike pulser

Applications

- Wall thickness measurement and flaw detection

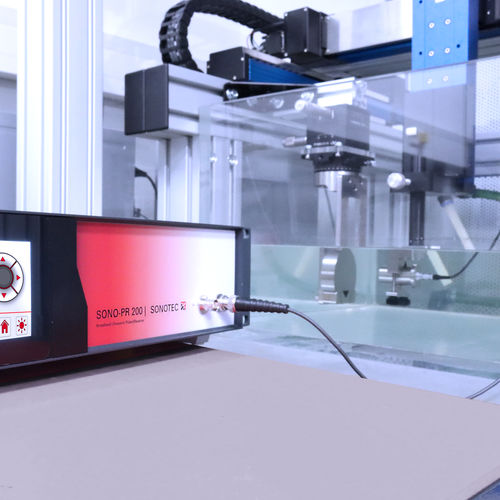

- Immersion testing and squirter applications
- Acoustic microscopy


Reliably replaces obsolete technology

Thanks to its extremely wide frequency range, the SONO-PR 200 pulser-receiver covers various areas of application: from ultrasonic testing on the widest range of materials including wall thickness measurement to immersion technology and squirter applications through to acoustic microscopy.
The possibility of remote control via serial interface, various trigger options as well as digital inputs and outputs make the SONO-PR 200 ideal for integration into automated testing facilities.

Numerous high pass and low pass filters

The individually configurable high and low pass filters enable specific adjustment to the application in order to achieve a max. signal-to-noise ratio.

Powerful spike pulser

The minimal rise times of < 1 ns enable optimum excitation of high-frequency test heads. Furthermore, the variety of adjustable energy levels enables the widest range of designs of ultrasonic test heads to be actuated.

General specifications -
Standards - 2011/65/EU RoHS; 2014/30/EU; 2014/35/EU, DIN EN 61326-1:2013
Protection class - IP 20
Bandwidth - 0,1 MHz to 200 MHz
Measurement methods - Impulse-Echo, Pulser-Receiver
Operating temperature - 0 °C to + 60 °C
Storage temperature - -20 °C to + 80 °C
Display - 4.3“ LCD TFT colour screen display 480 x 272 pixels, touch panel
Rack - 4.3“ LCD TFT colour screen display 480 x 272 pixels, touch panel

Parameter Name	Parameter Value
Type	ultrasonic
Other characteristics	broadband
