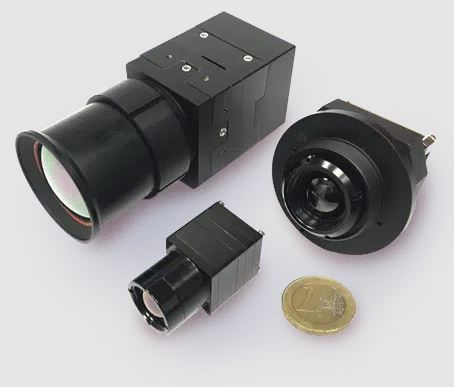

Based on Bertin’s FusionSight and PeriSight optronic technologies, CamSight is a family of lightweight, compact core cameras for complex optronic systems. Reliable, responsive and easy-to-use, the CamSight modules are available in three versions - Low Power; Low SWaP; High-Definition.
Designed for vehicle manufacturers and integrators, they can be adapted to any observation and surveillance system (UAS, UGS) or autonomous vehicles (UAV, UGV), covering a wide range of applications: intelligence, driver vision enhancement, local situational awareness, perimeter surveillance, intrusion detection, critical site monitoring, etc.

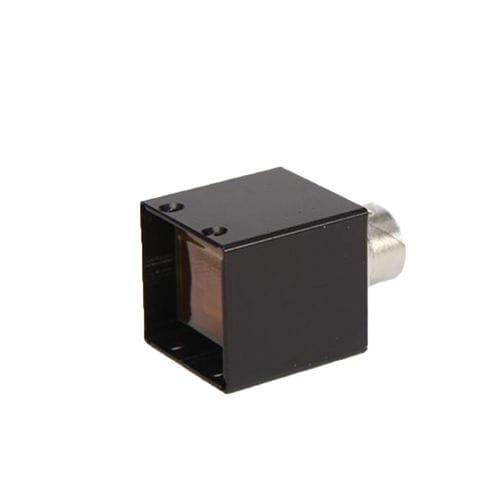

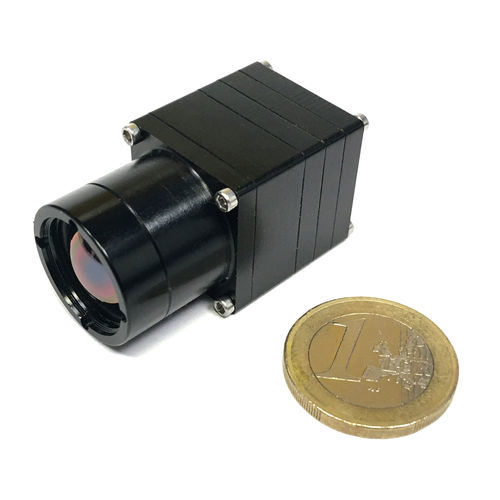

CamSight® LS is the smallest OEM VGA camera available on the market.
CamSight® LS features an uncooled ATTO infrared sensor by LYNRED, designed for
challenging applications. To comply with users requirements, the camera has been designed to be easily integrated into complex optronic systems, such as rifle sights, ground or aerial drones and every equipment requiring ultra low SWaP.
CamSight® LS is equipped with LYNRED’s sensor ATTO 640x480 with a 12μm pitch,
offering the following advantages:
- Thin pitch camera allowing lens size decrease
- Very low latency
- Freeze-free image delivery for unmatched fluidity
- Shutterless, no requirements for maintenance and calibration in operation.
TECHNICAL CHARACTERISTICS:
• Sensor: ATTO (by LYNRED) 640 x 480 @12µm pitch
• Bandwidth: LWIR (8-12µm)
• HFoV (°): 112 / 86 / 61 / 50 / 32 / 18 / 13
(More on demand)
• NETD: < 50mK @ F# 1/1.0
• Consumption: < 0.9W
• Video outputs: SD-SDI / PAL / MIPI CSI2 / GigE Vision
• Time to image: < 1s
• Dimensions: 22 x 22 x 15.5mm
• Weight: 9g
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
|
| Technology |
VGA
|
| Function |
|
| Spectrum |
LWIR
|
| Sensor |
microbolometer
|
| Interface |
|
| Resolution level |
640 x 480
|
| Other characteristics |
|
