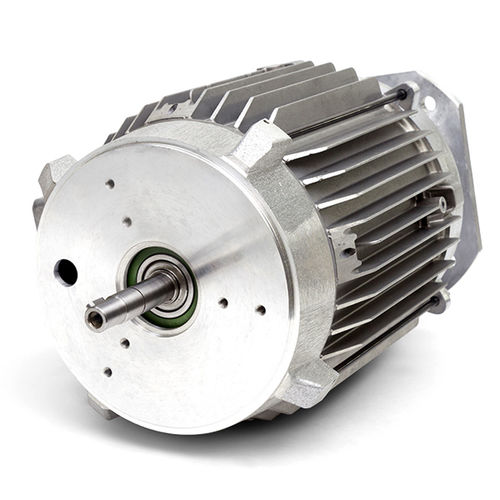

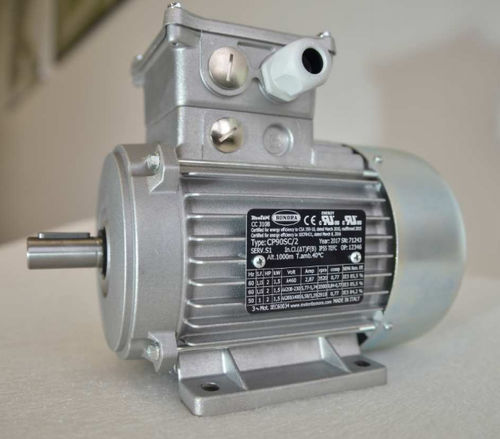

Three-Phase Motor, CP Series

STANDARD FEATURES
- Totally closed, with self-ventilation IC 411;
- Insulation class F;
- Duty S1;
- Protection degree IP 55;
- Squirrel-cage rotor.

Operation conditions:
- Voltage:±5% nameplate voltage range
- Frequency:±2% nameplate frequency
- Altitude: ≤ at 1000m (above sea level)
- Ambient air temperature: -15°C / +40°C

Voltages/Frequency
- 208-230λλ/460λ V Motors (2 poles) IEC 80÷160
Rated operation
208-230λλ/460λ V – 60 Hz x Pn
200λλ/400λ V – 50 Hz x Pn
- 330∆/575λ V Motors (2 poles) IEC 80÷160
Rated operation
330∆/575λ V – 60 Hz x Pn

Designed and manufactured according to rules UE:
2014/35/UE (LVD), 2014/30/UE (EMC), 2011/65/UE (RoHS).

Designed and manufactured according to standards:
UL 1004-1, EN 60034-1, EN 60034-5, EN 60034-6, EN 60034-7,
EN60034-8, EN60034-9, EN 60034-12, EN 60034-14, IEC 60072.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	asynchronous
Protection class	EMC IP55
Configuration	squirrel-cage rotor
Number of poles	2-pole
Cooling mechanism	self-ventilated
Applications	for industrial applications
Other characteristics	UL certified
Power (W)	750 - 22000
Torque (Nm)	2.06 - 71.3
Rotational speed (rpm)	2880 - 3560
