RFID reader and writer
EPC Class1 Gen2
USB interface – Bluetooth® 2.1+ EDR
HID (keyboard emulation) and SPP (bidirectional serial) profiles
Automatic reading of EPC or EPC + TID or other combinations
Output ASCII / HEX with prefix and suffix
Battery life up to 10000 readings

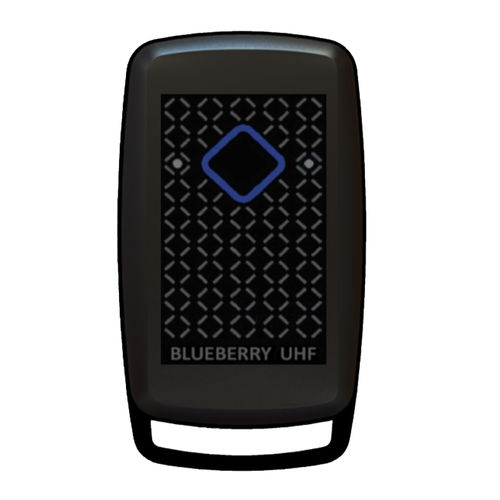

BlueBerry HS UHF is a mobile mini RFID reader, keychain shape, capable of reading UHF tags and transmitting the acquired data to any device equipped with a Bluetooth® radio interface.

The maximum reading distance is 30 cm for UHF far field tags and 2 cm for near field UHF tags.
The use of the RFID reader is easy and intuitive thanks to the presence of a single button, to activate the reading of the UHF tags (1), and an LED and a multi-tone beeper, to alert the operator of the reading.

BlueBerry HS UHF integrates Bluetooth® radio technology, in particular it uses HID and SPP profiles.

With the HID profile the data transmission takes place in keyboard emulation mode, mono-directional channel (2). This profile supports all major mobile devices, including those equipped with iOS and Android operating system, as well as the main desktop or portable devices, including those with Windows, Linux and Mac OS operating systems. Thanks to this profile, any application or program that accepts identification data entered from the keyboard can receive the same data transmitted by the BlueBerry HS UHF (3).

With the SPP profile, data transmission takes place in virtual serial mode, a two-way channel. A simple serial communication protocol, present on all TERTIUM Technology products, allows to manage all the RFID reader functions

Parameter Name	Parameter Value
Configuration	mobile
Connector type	USB, Bluetooth
Other characteristics	UHF with integrated antenna
Frequency (Hz)	865600000 - 927700000
Detection distance	Max.: 30 cm (11.81 in)Min.: 0 cm (0 in)
