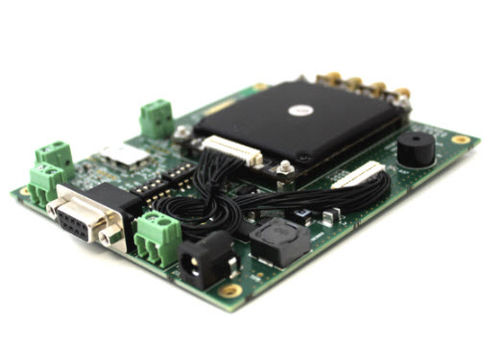

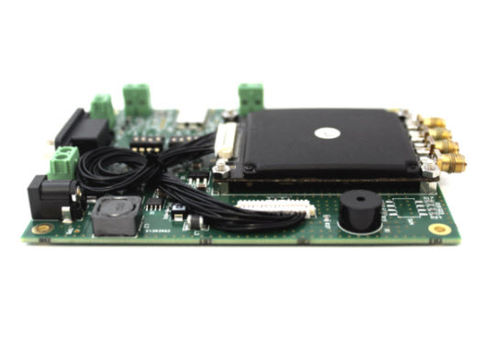

The M-2800 BT is a high performance 4-channel reading and writing module compliant with EPC Global UHF Class 1 Gen 2 / ISO18000-6C standard.
It enables adding RFID UHF to mobile and fixed readers for various applications (logistics, industrial automation…). The communication with any device is made easy with the Bluetooth which it is equipped with.
This module developed with INDY R2000 chip transmits up to 33dBm and is able to read 700 tags/sec.
Depending on your project, the M-2800 module has 2 inventory modes: buffer mode and real-time mode. In buffer mode, detected tag is stored in buffer. This mode improves the efficiency of multi tag inventory. In real time mode, detected tag is send the data in real time. This mode allows user to get tag’s data instantly.
Frequency -
UHF
Dimensions -
70 x 51 x 8 mm
Chipset -
Indy R2000
Air protocol -
EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ISO 18000-6B
Spectrum range -
EU: 865MHz-868MHz
US: 902-928MHz
Output Power -
0-33dBm
Precision: +/- 1dB
Flatness: +/- 0.2dB
Receive sensitivity -
700 tags/sec
Tag Buffer Size -
1000 tags @ 96 bit EPC
Max Baud rate -
115200 bps
