About
1. Powerful Satellite Tracking and Anti-jamming Capabilities
SatLab's unique design and self-developed antenna promise a stable and efficient operation. A highly integrated motherboard chip with low power consumption, supporting up to 1408 channels, tracks full constellations and frequencies. The excellent hardware configuration suppresses signal interference and obtains high-quality satellite-tracking data, ensuring performance and accuracy even in complex environments.

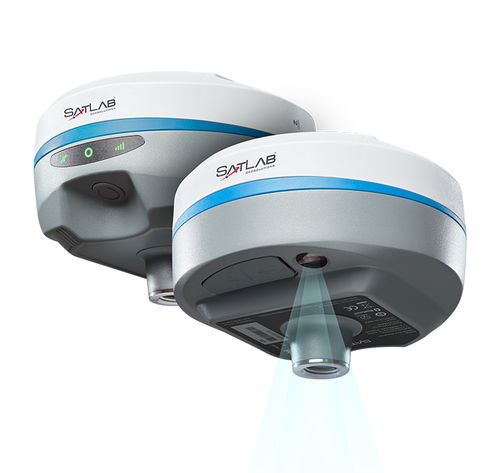

2. Visual Navigation Makes Stakeout Easier
Star-level HD camera provides users with immersive 3D visual navigation and stakeout experience, providing guidance of the pointing arrow on the real scene and the real-time distance display to users for quickly locating the target point. And the AR function can also be performed in line stakeout and CAD-based map stakeout, improving working efficiency by nearly 50% compared with the traditional graphics and text mode stakeout.
3. Accurate and Reliable Tilt Measurement
The SL7 utilizes SatLab's most advanced tilt measurement technology, and with a built-in 200Hz IMU module and automatic initialization upon turning on can automatically complete the tilt calibration process without waiting for a fixed solution during operation. And it can measure and stakeout with survey-grade accuracy within a tilt compensation range of up to 60°, increasing efficiency by nearly 30%.
4. Longer Battery Life and Better Portability.
Optimized the whole structure with new hardware, the nimble GNSS smart antenna weighs only 750g, Its energy-efficient hardware design ensures an extended operational battery life of up to 24 hours.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Applications |
|
| Interface type |
USB, RS232, TCP/IP, internet
|
| Other characteristics |
|
