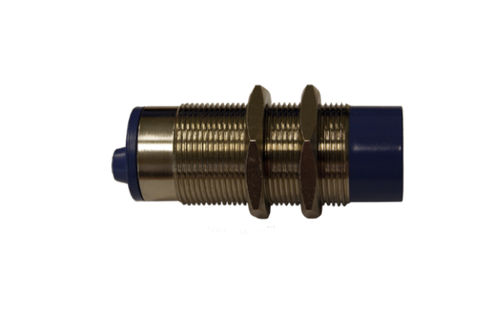

This space saving circular polarized UHF antenna can be easily and flexible mounted into any M30 connector.
It is a compact and economical solution for various RFID applications.

Its rugged IP67 Design guarantees total protection against dust and the effect of immersion.
Reading distances of up to 20 centimeters / 7.9 inches can be achieved.

This BLUEBOX Cylindrical RFID antenna M30 perfectly fits assembly lines,
production logistic and conveyor belt applications.

iDTRONIC‘s M30 Antenna is available in two designs:
A straight mounted version, and a 90° angled connection one.
Furthermore you have the choice between versions for ETSI and FCC frequency range.

The Cylindrical Antenna M30 is a stationary all-round RFID reader for automation processes in industry and supply chain applications. The cylindrical design is exclusive and unique on the market and was specially developed by iDTRONIC.

Applications

- Industrial Automation
- Supply Chain
- Asset Tracking
- Access Control

Parameter Name	Parameter Value
Network	UHF RFID
Type	cylindrical
Other characteristics	IP67 rugged high-performance
Applications	vehicle tracking localization
Frequency (Hz)	865000000 - 928000000
Gain (dB)	-8 - -8
