VHF & UHF Folded Dipole Antennas

HORWIN ADxx0x series is a single or dipole array wide band VHF/UHF antennas for extensive range of applications – trunking radio systems, military communications, dispatch base stations, amateur radio repeaters, etc.

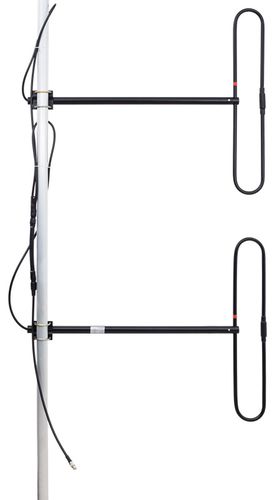

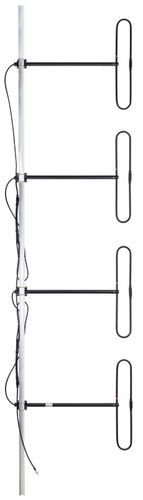

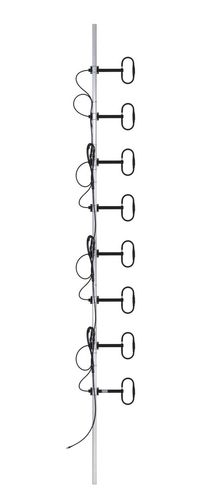

More gain is achieved by coupling single folded dipoles into arrays. The horizontal radiation pattern is adjusted by changing the distance between dipole elements and supporting mast.

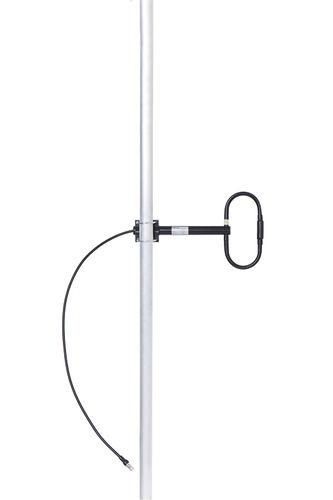

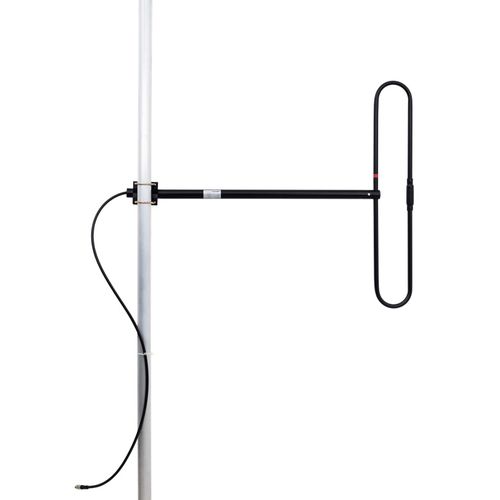

AD dipole antenna
xx frequency band (16=160, 45=450 MHz)
xx elements number

Parameter Name	Parameter Value
Network	UHF VHF
Type	dipole
Frequency (Hz)	136000000 - 470000000
Gain (dB)	0 - 12
