Application:
Suitable for all sizes of the coal pile, large earthwork and stonework, filling volume measurement, widely used in field of electric power, coal cement, paper, metallurgical, petrochemical, environmental protection, geological prospecting, transportation, etc.

Working Principle

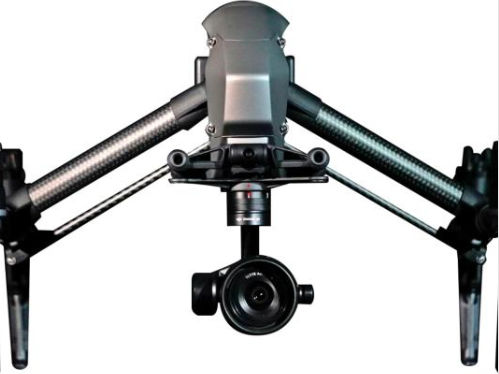

The unmanned aerial vehicle is used as the measuring platform to carry a professional surveying and mapping camera with high resolution to automatically shoot the stockpile. After automatic image processing in the later stage, the three-dimensional model of the stockpile is reconstructed and the stockpile heap volume of the stock pile is accurately calculated.



System Configuration

Professional aerial photography unmanned aerial vehicle; Surveying and mapping level aerial photography system；ground station( ground station computer( Ipad), ground station surveying and mapping software); Data processing workstation.



Highlights

①High precision of measurement: No blind area aerial photography features, combined with the 20 million pixel hd aerial photography system, as well as the high precision self-developed three-model modeling software, to ensure high precision stockpile inventorying.



②Stockpile-inventorying system: Automatic route planning, one-click takeoff, automatic operation, the whole data collection process is completed by the uav automatically.The software automatically completes the 3d modeling.



③High adaptability: SDUAV100S adopted industrial-grade structure design,waterproof and dustproof, can adapt to cloudy and rainy days, equipped with intelligent anti-collision system, can find the obstacles during flight and avoid automatically.

Parameter Name	Parameter Value
Applications	for UAVs
Function	spark optical emission
