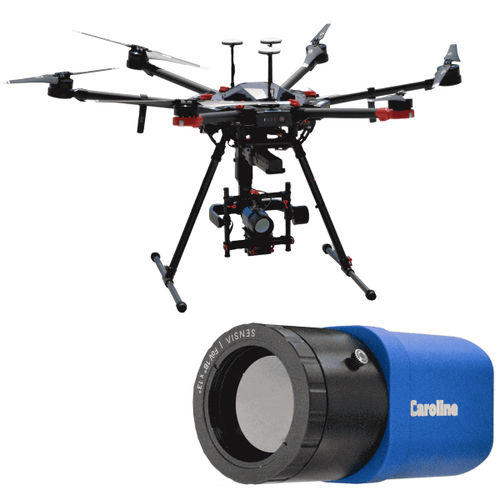

Caroline Y ON-BOARD is SENSIA’s latest model of Optical Gas Imaging (OGI) for unmanned aircrafts surveys. This thermal camera based on an Uncooled Vox detector, is able to detect fugitive emissions of methane (CH4), SO2 and VOC’s leaks down to 1,4 g/h os CH4.

The system integrates an on-board computer with Redlook Software which runs the gas imaging processing algorithMs for gas detection.

Base Specifications
Field of view : 18º x 13º
Detector : Uncooled 640 x 480 px
Spectral region : LWIR
Pixel Pitch : 17 μm
Raw video data : 14 bits
NETD : <22mK @ +30ºC
MDLR (for CH4)* : 1,4 g/h
Electrical : <3 W
Voltage : 5 V (USB)
Data : USB
Material : 6068 aluminum
Max. Dimensions : 66 x 77 x 110 mm
Weight : 640 kg
Mechanical interface : 1/4” UNC
Operating Temperature Range : -10ºC to +50ºC
Storage Temperature Range : -40ºC to +71ºC
Maximum relative humidity : 95%
Certifications : EMC (EN 61326:2013)
: IP 65 (EN 60529:2018)

Parameter Name	Parameter Value
Applications	for UAVs
Technology	digital
Function	surveillance for gas leak detection for VOC gas leak detection thermal
Spectrum	infrared
Interface	USB
Other characteristics	high-sensitivity smart uncooled
