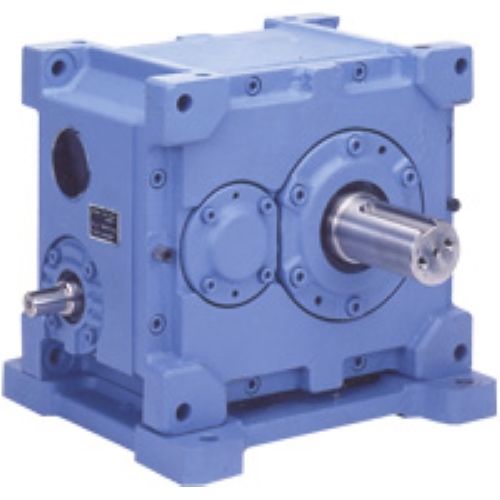

The MakiAce (MA Series) was born as a result of the combination of Makishinko's many years of experience with worm helical Speed Reducer development and cutting-edge technologies. MakiAce is a high-grade product targeted towards multiple fields and applications that boasts characteristics such as high-power, high efficiency, miniaturization, attractive appearance, easy usability and high-quality.

Orthogonal shafts -
Make space saving design possible.

Reduction ratio -
The orthogonal shafts offer high reduction ratios (50 to 360).

Shaft layout -
Output shafts available include the shafts available standard in all models, dual shafts (optional) or hollow models.

Torque -
A wide range is available from 405 to 6,700 Nm.

Models -
4 models available in the product line including the 100, 125, 160 and 200.

Parameter Name	Parameter Value
Type	worm helical
Shaft orientation	right angle
Torque (Nm)	200 - 500 500 - 1000 1000 - 2000 5 - 10 2000 - 5000 5000 - 10000
Shaft configuration	hollow-shaft solid-shaft dual-shaft
Number of stages	two-stage
Performance	high-performance high-efficiency high-torque high-power
Applications	transmission for industrial applications for automation
Other characteristics	compact industrial
Rotational speed (rpm)	100 - 1800
Power (W)	100 - 9900
