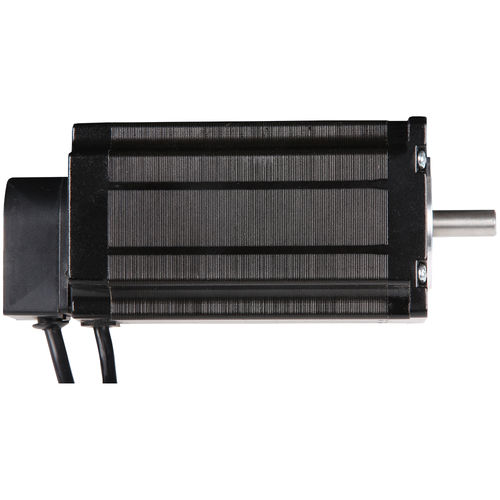

This NEMA motor satisfies any requirement. As a cloosed-loop stepper motor with 2 phases, it turns 1.8° per step and ensures steady movement and an optimum holding torque of 3 Nm. The feedback loop allows the motor driver to recognize and to ensure that the right amount of steps was taken. It contains a cloosed loop with a sensor which enhances the accuracy of positioning and prevents, in the scope of the the physical capabilities, the step loss. Thus, this NEMA23 combines the advantages of the stepper and servo motor technology.

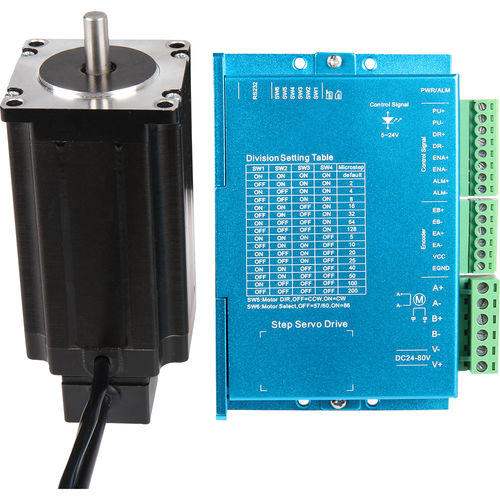

Special feature: The closed-loop capable stepper motor driver is already included in the delivery.


PHASE INDUCTIVITY
2.8 mH

ISOLATION RESISTANCE
Min. 100MΩ at 500 V DC

ISOLATION CLASS
B (130°)

ROTATIONAL INERTIA
650 g·cm²

DETENT TORQUE
0.1 Nm

DIMENSIONS
56 x 56 x 120 mm

WEIGHT
1,4 kg

Parameter Name	Parameter Value
Type	two-phase stepper
Voltage (V)	3 - 3
Other characteristics	precision motion control closed-loop
Power (W)	94.07 - 94.07
Intensity (A)	4.2 - 4.2
Torque (Nm)	3 - 3
Rotational speed (rpm)	540 - 540
Diameter (mm)	8 - 8
Operating temperature (°C)	-10 - 50
