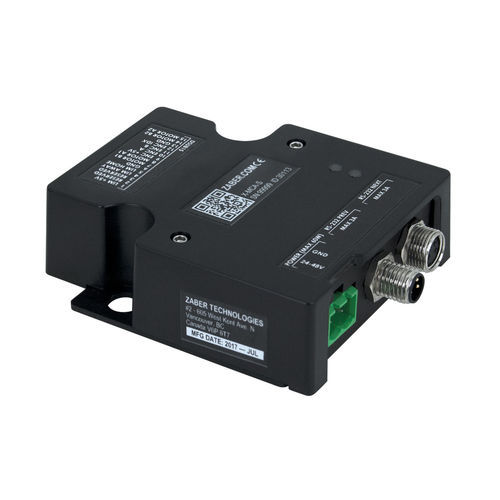

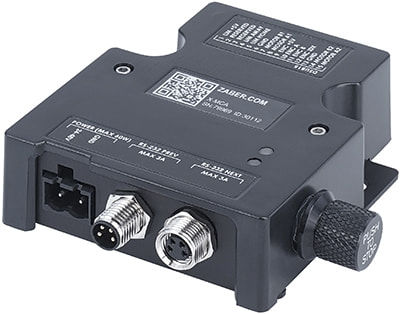

Two-phase stepper motor controller X-MCA series

Two-phase stepper motor controller X-MCA series

Two-phase stepper motor controller X-MCA series

About


Economical, Space-Saving Stepper Motor Controllers

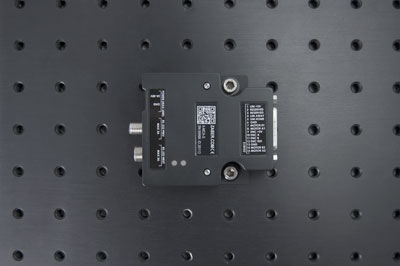

Zaber's new, high resolution, economy controllers - the X-MCA Series - control any open or closed-loop bipolar stepper motors or actuators. These controllers each have an integrated 1.0 Arms (1.4 A peak) per phase driver with customizable micro-stepping. The footprint is only 22.6 mm x 65 mm x 75 mm - perfect for tight spaces. The X-MCA's also have a wide range of mounting options including 90 degree stacking and 35 mm DIN rail mounting, so it is easy to mount them on panels, breadboards, lab benches, DIN rails, and in enclosures. With a starting price of $396 (USD), the X-MCA is one of the least expensive stepper motor controllers in its class.



PARAMETERS

Parameter Name Parameter Value
AC/DC
DC
Motor type
two-phase stepper
Other characteristics
  • closed-loop
  • single-axis
  • RS-232
Applications
positioning
Input voltage
Max.: 48 VMin.: 24 V
Current (A)
1000 - 1418
