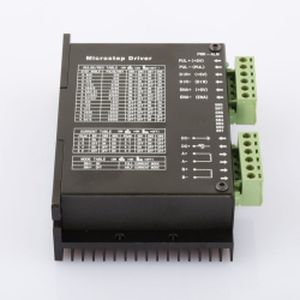

M752 - 2 Phases Analog Stepper motor drivers factory,Stepper motor drivers manufacturer,Stepper motor drivers wholesale; Max 70 VDC / 5.2A

Product description: stepper motor driver,servo driver,driver integrated servo motor,automation products,setpper motor controller,3-axis stepper motor controller

Product Abstract:
M752 - 2 Phases Analog Stepper motor drivers factory,Stepper motor drivers manufacturer,Stepper motor drivers wholesale; Max 70 VDC / 5.2A

Product Description

• Features

• Extremely cost-effective
• Good high speed performance
• Supply voltage up to +75 VDC
• Output current up to 5.2A
• Self-adjustment technology
• Pure-sinusoidal current control technology
• Pulse input frequency up to 300 KHz
• TTL compatible and optically isolated input
• Automatic idle-current reduction
• 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
• Suitable for 2-phase and 4-phase motors
• Support PUL/DIR and CW/CCW modes
• Short-voltage, over-voltage, over-current protections

Description

The M752 is a high performance micro-stepping drivers based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives on the markets. It is suitable for driving 2-phase and 4-phase hybrid stepper motors.

Parameter Name	Parameter Value
AC/DC	two-phase DC
Output signal	analog
Product applications	for stepper motors
Voltage (V)	48 - 70
Other characteristics	integrated
Intensity (A)	2 - 5
