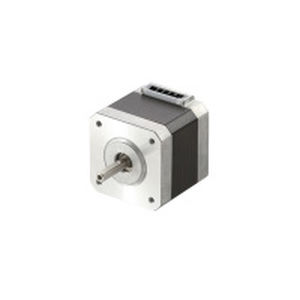

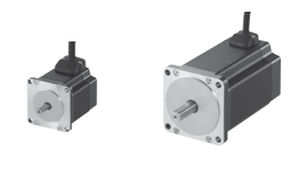

High-torque, 2-phase bipolar stepper motors and geared type stepper motors offer the optimum performance and value. In addition to offering high torque, the PKP series stepper motors offer more variety of electrical specifications, more frame sizes, encoder options and electromagnetic brake options for the right solution in stepper motors.

• Offers 1.2 ~ 1.7 Time More Torque
• 1.8° (200 pulse/rev) & 0.9° (400 pulse/rev)

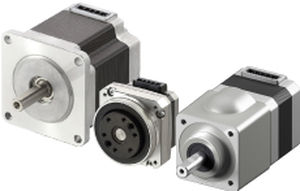

• Spur Gear or Planetary Gear Types

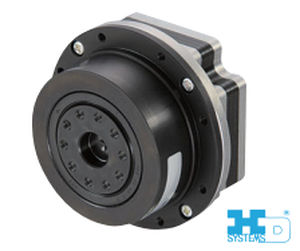

• Flat Motor types with or without Harmonic Gear available for space saving and greater inertia matching
• Bipolar (4 lead wires)
• Encoders - 200 or 400 Lines of Resolution
• Electromagnetic Brake Type
• Bipolar Stepper Motor Drivers Available

Parameter Name	Parameter Value
AC/DC	two-phase
Type	stepper
Configuration	permanent magnet compact NEMA 23 NEMA 17 flat NEMA 34 NEMA 24 NEMA 11
Number of poles	bipolar
Other characteristics	high-torque high-speed high-resolution NEMA 14
Intensity (A)	0.28 - 6.3
Torque (Nm)	0.02 - 120
Operating temperature (°C)	-10 - 50
