Diversity is the key with hamatic compact drives. Customer requirements are as diverse as the product portfolios are. Which is why the name hamotic compact combines frameless synchronous and asynchronous drives of various designs.

At a glance

hamotlc compact

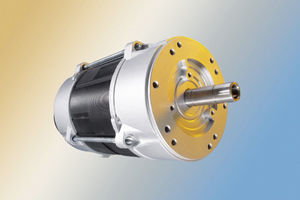

Frameless drives of synchronous and asynchronous design

Application fields:
Industrial rapid-action doors, food processing, laboratory and lifting equipment commercial washing machines and more

Advantage/beneftt
Excellent price and performance ratio

Technical specifications:
Output 0.09-7.5 kW. Speed 1,000-25,000 min '. Protection rating IP00 to IP55
Options:
Base and flange mounted versions, special armature and end shields, external fan, brake, position transducer, protective cover and more

Door and gate drive
Wind loads, rainfall, extreme temperatures - not a problem for the hamotic compact door and gate drives.
Its high starting torques ensure that operation is flawless even under difficult conditions. Its costs are as straightforward as its dimensions.
Thanks to its highly efficient design, it offers just what you need - nothing more and nothing less.

TECHNICAL SPECIFICATIONS AT A GLANCE
Output: 0.37 kW Speed: 1,400 min"1
Protection rating: IP00

Parameter Name	Parameter Value
AC/DC	two-phase
Type	synchronous
Configuration	frameless compact
Power (W)	90 - 7500
Rotational speed (rpm)	1000 - 25000
