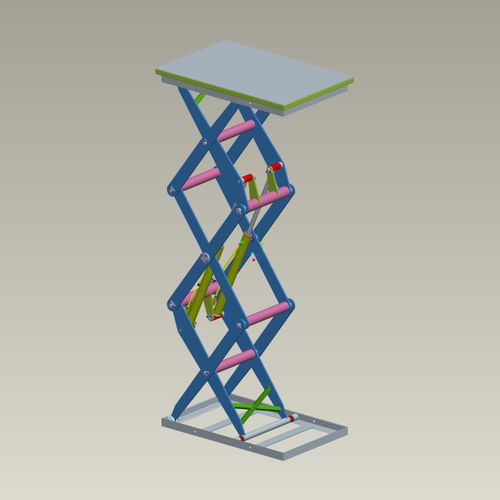

In recent years, the platforms have often been the simple and economic solution to any problem of handling of goods, supplying of production lines, rapid leveling of two or more floors. Our platforms are constituted by a rigid base frame, resting directly on the floor where there is pantograph lifting system that is built with the principle of equal resistance, and to the top of it there’s a platform made in a way to resist, even in the presence of not perfectly distributed loads.

The functioning of the platform is given by means of an electrical system consisting of a control panel, an ascent/descent button panel used by man at low voltage (24V – Safety Standards), a control unit sends pressurized oil, one or more simple effect hydraulic jacks. All joints and rolling are constituted by high resistance steel pins and bushes of antifriction material (PTFE-Nylon).

Parameter Name	Parameter Value
Technology	triple-scissor
Operation	hydraulic
Type	stationary
Application	loading
Capacity	500 kg, 1,000 kg, 2,000 kg, 3,000 kg, 5,000 kg (1,102.3 lb)
Lifting height	Min.: 3,000 mm (118 in)Max.: 6,650 mm (262 in)
