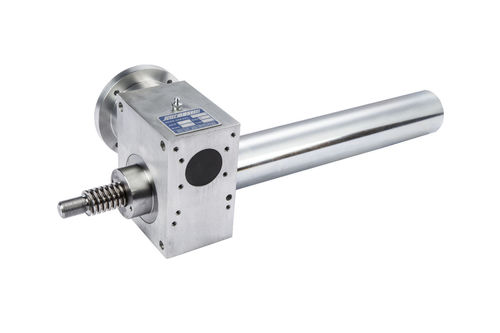

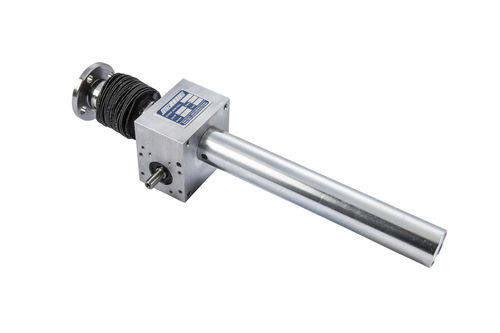

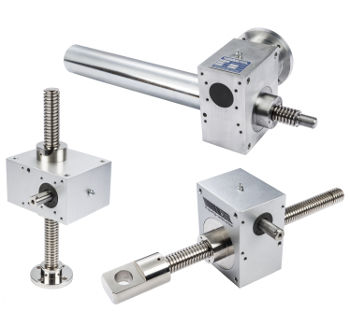

Mechanical screw jack with housing in high strenght Aluminium alloy.
5 different sizes (SEL5, SEL10, SEL25, SEL50, SEL100).
3 different reduction ratios (1/5, 1/10, 1/30).
Lifting/thrust capacity up to 100 kN.
Lifting/thrust speed up to 15200 mm/min.
"T" version, featuring Trapezoidal spindle (self-locking).
"S" version, featuring Ball Screw spindle (high efficiency).
Grease lubricated.
Modular and compact cubical design provides maximum adaptability to each specific application.
Wide range of standard accessories/features.

Parameter Name	Parameter Value
Type	trapezoidal screw ball screw
Other characteristics	motorized manually-controlled safety nut worm gear compact aluminum alloy
Torque (Nm)	1 - 159
Stroke (mm)	40 - 5000
