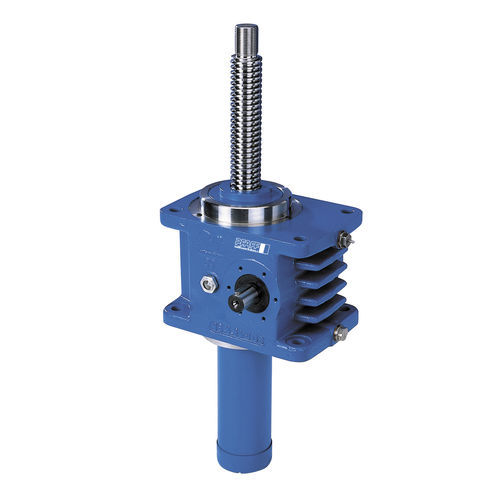

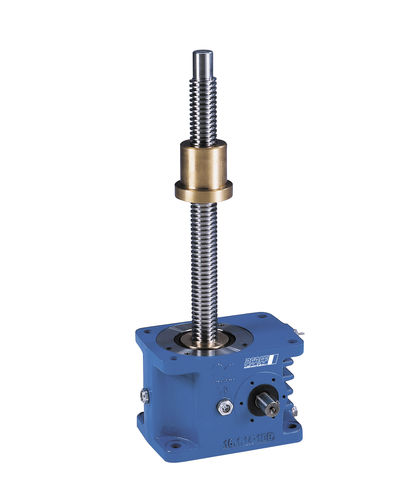

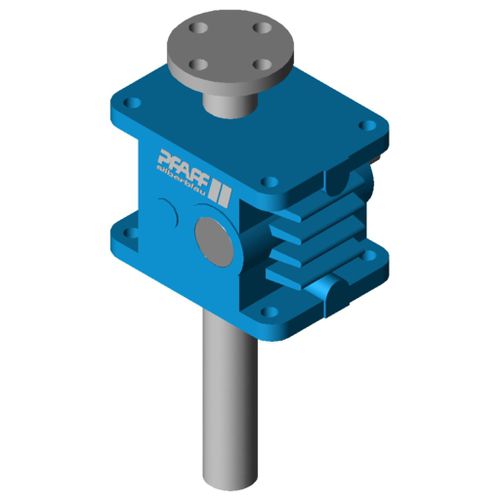

The high performance worm gear screw jacks HSE has been developed specifically for the dynamic use at medium and high lifting speeds and an increased duty cycle.

The housing made of spheroidal graphite iron with the cast-on cooling fins is designed in such a way that high heat dissipation to the surrounding area is ensured.

Features and processing

• 8 different sizes
• Input speeds up to 3000 min-1
• Self-locking trapezoidal screw
• Separate lubrication circuits: Tr screw with grease-lubrication and worm gears with oil lubrication
• Worm gear pairs in two ratio steps (normal „N“ and slow „L“)
• Worm-drive shaft case-hardened and ground
• Patented gearing construction with different heat zones for medium and high lifting speeds
• Possible usage according to directive 2014/34/EU (ATEX)

Pfaff-silberblau drive elements and complete drive solutions for a wide range of applications in areas such as mechanical engineering, the automotive industry, power supplies, the food industry, logistics applications and much more.

Parameter Name	Parameter Value
Type	trapezoidal screw
Other characteristics	high-performance worm gear
