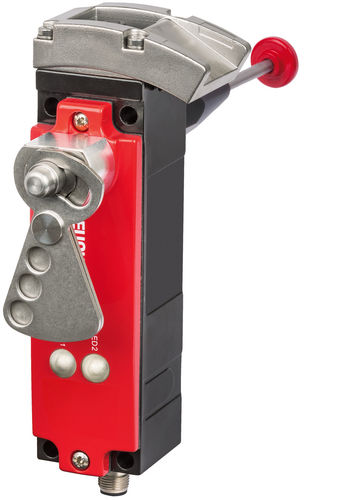

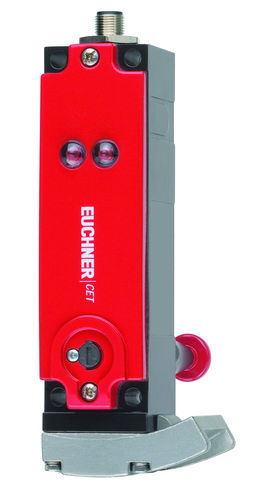

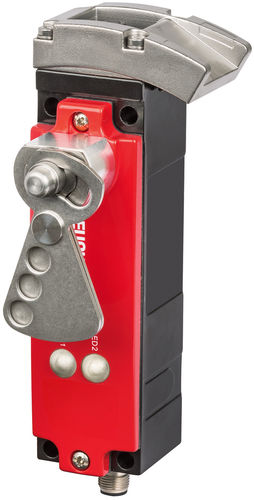

Read head CET1-AX-... M12, with guard locking and guard lock monitoring, double ramp
• Read head with guard locking
• Locking force up to 6,500 N
• Up to category 4 / PL e according to EN ISO 13849-1
• With plug connector M12
• 2 LEDs (1 freely configurable)
• With double ramp
• Approach directions A and C (delivery state)
Solenoid operating voltage
DC 24 V +10%, -15%
Guard locking type
CET1

Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid.

LED function display
LED red

illuminates when the solenoid is energized

LED green

freely configurable

Category according to EN ISO 13849-1
Important: The category according to EN ISO 13849-1 depends on the evaluation unit used and on the installation orientation.

Parameter Name	Parameter Value
Other characteristics	transponder
