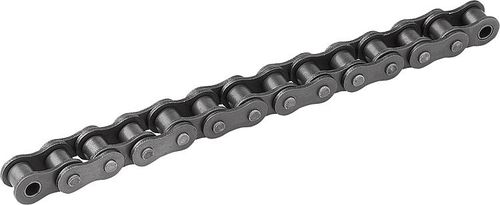

Roller chains single DIN ISO 606, curved link plate

Material:
Steel.

Version:
Pre-stretched.

Note for ordering:
Packaging unit: 5 metres with odd number of links. Ending with an inner link at both ends. Connecting links must be ordered separately.

Note:
European-type roller chains acc. to DIN ISO 606 with curved link plates (ISO No. 06 with straight links). All chains are pre-stretched. Initial lubrication: anti-corrosion mineral based oil.

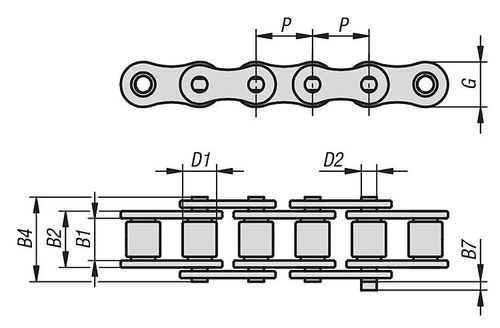

B7 = maximum value for links.
Pitch = PxB1

Temperature range:
-20°C to +120°C.

Parameter Name	Parameter Value
Type	transmission
Material	steel
Configuration	roller
