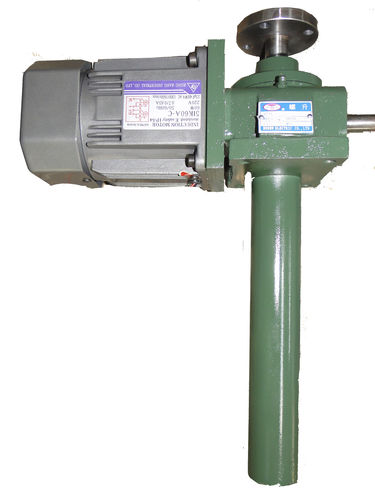

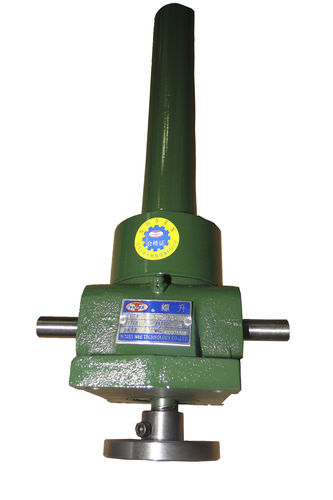

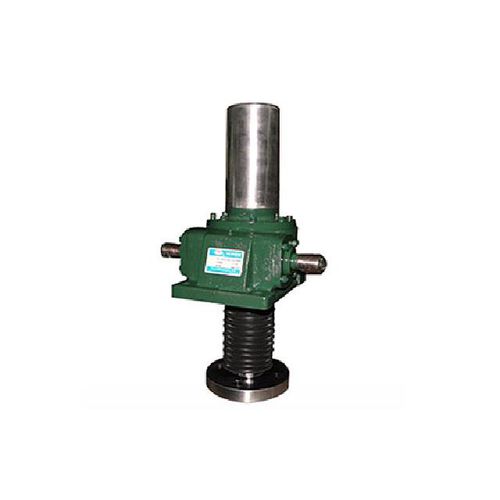

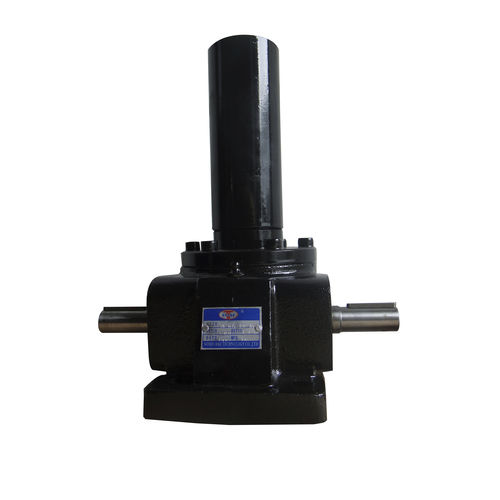

Model: RN-10T
* Screw Diam: 45mm
* Screw Pitch: 8 mm
* Static Load: Max 10 tons
* Dynamic Load: Max 6.4 tons
* Speed Ratio: 1/8 1/16 1/32
* Lifting Speed: 75-1500 mm/min
* Input Power: 0.65-2.84 hp
* Max Input: 1500 rpm
* Screw Type: trapezoidal screw
* Top End: top plate, clevis end, threaded end, plain end
* Power Source: Electric, Manual, Both
Translating screw: A driven worm shaft acts on an internal worm gear, which in turn drives a lifting screw to extend or retract. As the lifting screw translates through cast iron housing, then worm gear and lifting screw rotate together. When the lifting screw is held to prevent rotation, the lifting screw will move linearly through the cast iron housing to move the load.
Keyed screw: Some loads don’t prevent lifting screw rotation. These applications require a keyed screw jack. A key, fixed to the jack housing and inserted into a keyway milled into the lifting screw, forces the lifting screw to translate without rotating.
Rotating screw: A lifting screw keyed to the worm gear as a single unit, forcing the lifting screw to rotate,but not translate. A traveling nut, attached to the load, is driven by the rotation of the lifting screw. This type jack is ideal for applications that can not accommodate a screw protective tube and save enough mounting space.

Parameter Name	Parameter Value
Type	translating screw rotating screw trapezoidal screw
Other characteristics	motorized high-performance manually-controlled safety nut for table height adjustment for workstation height adjustment for solar panels cast iron
Stroke (mm)	0 - 2500
