MOTOMEA Distribution Transformer Test Systems
Routine Testing for Production (EOL) and Quality Assurance (QA)
Type Testing at Laboratory (R&D)

MOTOMEA is a globally leading supplier of distribution transformer testing systems.

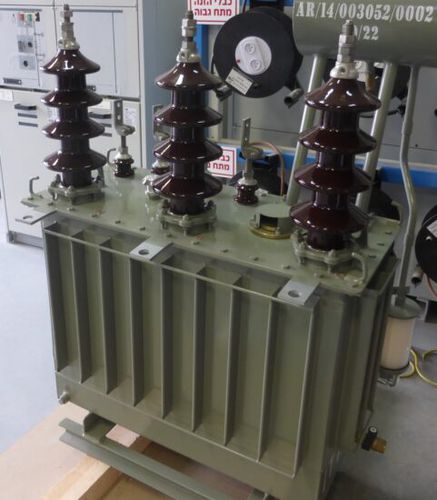

MOTOMEA DTSy systems give you the capability of testing dry and oil immersed distribution transformers, in a simple manner.
MOTOMEA DTSy systems are complete turnkey systems, which fully implement standards:
• IEC 60076
• IEEE C57.12.90/ANSI
• GOST

Main Features
• The turnkey system implements IEC 60076-1, IEEE C57.12.90/ANSI, and GOST.
• Winding resistance measurement (HV and LV).
• No-load current and no-load loss measurements.
• Short-circuit impedance and load loss measurements.
• Heat run (Type Testing).
• Partial discharge (Type Testing).
• The applied voltage at each tapping.
• Turns ratio.
• Sound power level.
• Dielectric tests – Separate-source voltage withstand the test.
• Insulation resistance.
• Induced voltage test

Features:
• Simple and easy implementation of routine tests defined in IEC 60076-1.
• Used for Development and testing of new or repaired transformers.
• Can be used for Quality control testing and EOL testing.

Parameter Name	Parameter Value
Test type	voltage, insulation resistance, electric, performance, power, impedance, dielectric, partial discharge
Tested product	for transformers
Applications	industrial laboratory R&D
Other characteristics	computer-controlled
