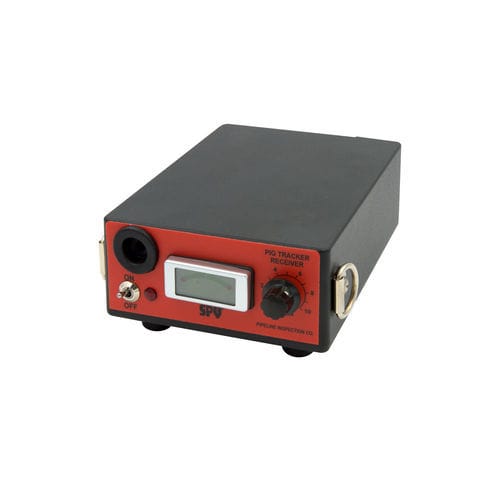

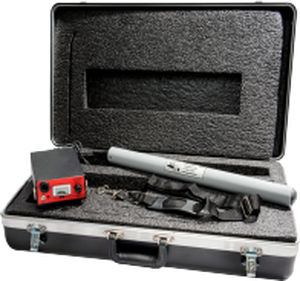

To locate a pig equipped with a SPY® Transmitter, the SPY® 23 HZ Receive (Pig Tracker Receiver and Wand) registers the changing magnetic field produced by any SPY® Transmitter. When the Transmitter is located, the 23 HZ Receive produces both an audio and visual output. With two standard 9-volt alkaline batteries, the 23 HZ Receive can be powered continuously for approximately 50 hours. Special waterproof wands are available for sub-sea applications, with depths of up to 10,000 feet [3000 meters].

For the most reliable signal available, the SPY® Pig Transmitter uses low frequency signals to effectively and consistently penetrate a steel pipe wall. We offer numerous transmitter sizes to cover a full spectrum of pipe diameters. Each transmitter is self-contained and travels inside various pigs, attached to versatile brackets, or towed. A hand-held receiver and wand are used to locate the transmitter.

SPY TRANSMITTERS have been proven effective in the eld for many years. Each SPY® transmitter is designed and built for long reliable service.

Rugged casing is liquid-tight.
Battery operated.
Coded signal minimizes false readings.
Strongest signal available.

Frequency: 23 Hz Receive

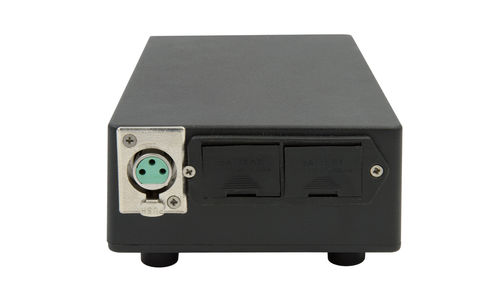

Battery: 2 x 9 Volt
Battery Life: 50 Hrs
Display Type: LCD
Signal Indicator Type: Audible / Visual
Unit Dimensions L x W x H: 7.5” x 5.25” x 2.5”
Factory Warranty: 12 Month
DOM. / INTL. Standards: CE Compliant

Parameter Name	Parameter Value
Applications	tracking audio
Other characteristics	portable
