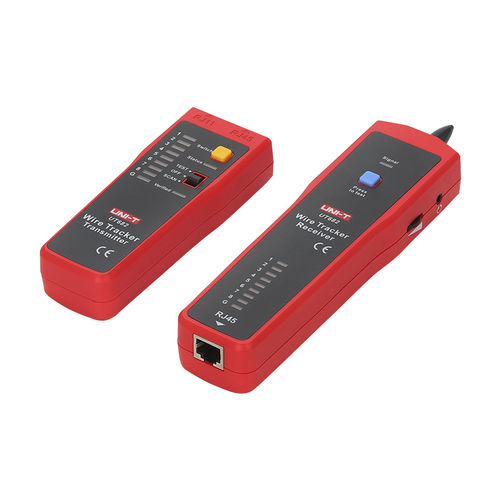

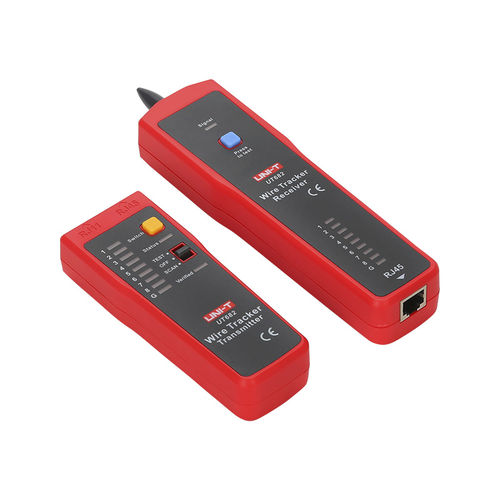

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.

Features of UT682 Series Wire Tracker/Tone and Probe

Certifications: CE, UKCA

● Telephone/ethernet/power cable tracking
● DC level test, can check voltage level and polarity
● Ethernet cable wiring sequence verification
● Fast open/short circuit test
● Volume adjustment
● Headset connection for noisy environment
● Dual measurement cycle mode
● Low battery indication

General Characterisitics

Product color - Red and grey

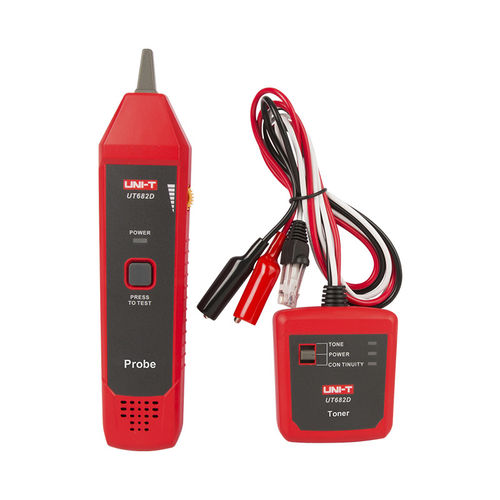

Product net weight - UT682: Transmitter-125g, receiver-153g; UT682D: Transmitter-150g, Receiver-130g
Product size - UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm
UT682D: Transmitter-74mm x 68mm x 28mm, receiver-208mm x 47mm x 33mm
Standard accessories - 9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682)
Standard individual packing - Blister (UT682), carrying bag (UT682), gift box (UT682D), English manual
Standard quantity per carton - UT682: 24pcs; UT682D: 20pcs
Standard carton measurement - UT682: 575mm x 310mm x 430mm; UT682: 425mm x 265mm x 260mm
Standard carton gross weight - UT682: 12.3kg; UT682D: 7.5kg
