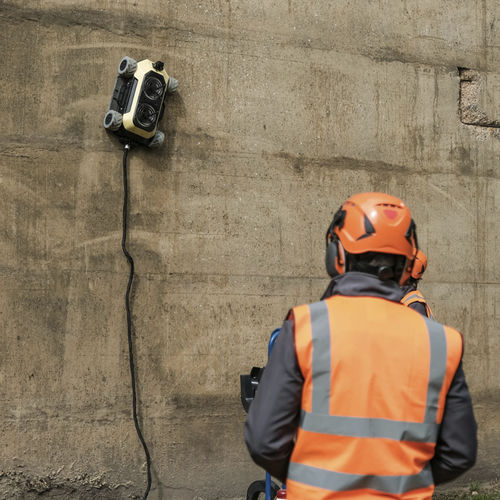

The NOVAbot HB1 can climb rough surfaces, overcome obstacles such as wires and surface bolts, and has a payload of 6KG.

We use our robot for: painting, HD visual Inspection and building and infrastructure surveys.

42KG of Suction Force
Our unique and carefully designed suction system.
Creates 42 KG of force into the surface. Whilst it may seem miraculous. It’s certainly not going anywhere. The HB1 has a 30m range from the ground, but potentially unlimited if the tether can be supplied from the roof.

Any Surface Texture
Our unique technology is capable of climbing on ferrous and non-ferrous surfaces such as stainless steel, brick and concrete, and overcome surface obstacles of up to 12 mm including welds, rivets and wires.

Down to 3M Radius
We are able to create a robot for any climbing challenge. Columns, tanks, flat walls… you name it, we climb it.

6KG Payload
The HB1 has 6KG available for your payload.
Sensing, inspecting, grabbing, painting and more. Within the 6KG available, the uses for your project are almost unlimited.

– Payload: 6 Kg
– Suction force: 42 Kg
– Length of cable connecting to control unit: 30 m
– Overcoming obstacles: up to 12 mm thickness

– Control unit with PC and Joypad
– Connection cable
– Power cable
– NOVAbot HB1

Parameter Name	Parameter Value
Locomotion	wheeled tracked
Options	remote-controlled modular vertical operation long-range
