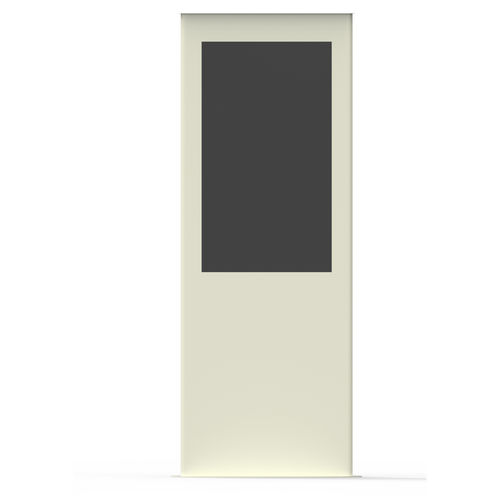

LARGE SIZE PANELS. This indoor totem allows
the integration of 43 ”, 47” and 55 ”screens
vertically. The different formats of interactive
displays together with static advertising on backlit
panels make this kiosk a powerful communication
tool.
The eDirectorio allows easy transport since 6 wheels can be
incorporated. In addition to integrating different peripherals
such as; ID, USB or webcam reader.
Available in any color from the RAL range, it can be adapted to the
corporate image of the client's brand with vinyl or digital image.
EOS Ibérica advises its clients on the optimal configuration to adapt
the product to their needs when selecting elements such as
screens, industrial components or readers.

Screen:
> Industrial LCD 24/7.
Screen resolution:
> 43 ”, 16: 9 (vertical).
Number of screens:
> 1.
Video output:
> HDMI, DVI, SVGA.
Screen protection:
> 3 + 3 mm anti-vandal glass.
Access:
> 1 door with security lock or latch.
Connections:
> Internal terminal block with I / O switch.

Production:
> 4 weeks (estimated time).
Material:
> AP2 1.5 / 5 mm sheet steel.
Flanges / internal fasteners:
> Galvanized sheet.
Finish:
> High resistance epoxy paint.
Tightness and sealing:
> IP42.
Dimensions:
1904x705x147 mm.
Structure weight:
60-90Kg.
Use:
> Indoor.

Parameter Name	Parameter Value
Interface	touch screen
Mounting	kiosk floor-standing
Other characteristics	LCD USB
Applications	industrial
Screen size (mm)	47 - 47
