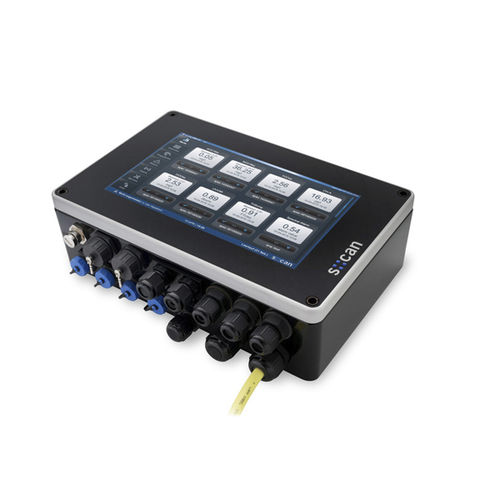

con::cube - a compact, versatile terminal for data acquisition and station control. Newest processor technology and very flexible options for interfacing to SCADA or any central database systems makes the con::cube in combination with moni::tool a powerful terminal for compact station control.

s::can high-end IoT (Internet of Things) terminal based on an industrial PC, IP65
wide screen color graphical display (9”) and touch screen
highly intuitive use, informative visualization & easy operation: time series, optical spectra and all events in clear text
sensor and station management of up to 64 parameters: automatic cleaning, data logging, sample & calibration incl. history and multipoint calibration, sensor function check, user management, easy data transfer via USB-stick
low power operation with less than 3 watt (@ 15 min. measuring interval): wide range AC and DC variants available
IoT (Internet of Things) and M2M (Machine to Machine) connectivity: 1 Gb/s Ethernet, 300 Mb/s Wi-Fi 802.11a/b/g/n and optional worldwide HSPA+ 3G interface, remote control (http), data transfer into cloud via FTP, SSH and TML
process interface to SCADA via: Modbus RTU/TCP, SDI-12, Profibus DP, analog 0/4-20mA and relay outputs (state)
integration of third party sensors via: analog 0/4-20 mA and digital (solid state) inputs, Modbus RTU/TCP
easily extendable: 8 slots to customize I/Os, moni::tool software pre-installed, additional software features like online data validation and event detection optional

Parameter Name	Parameter Value
Interface	touch screen
Mounting	panel-mount
Other characteristics	compact Profibus IoT
Applications	industrial control data visualization
