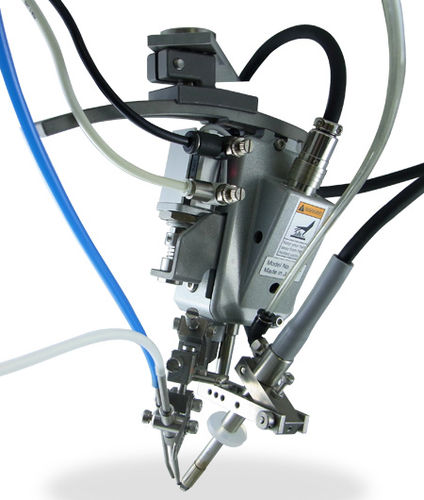

AUTOMATIC SOLDERING UNIT
Multiple power (AC90-264V) input for world wide factory use; easy transfer to overseas facilities. The Terra controller has been designed to be integrated with any external robot.

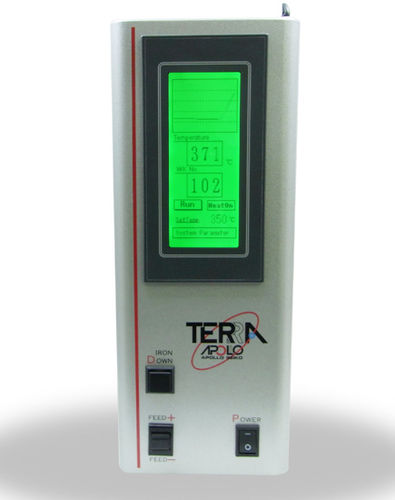

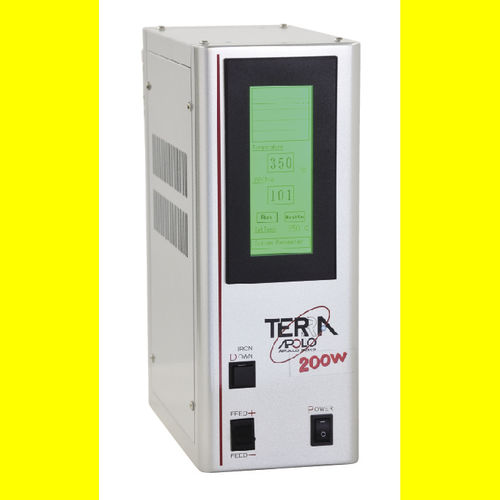

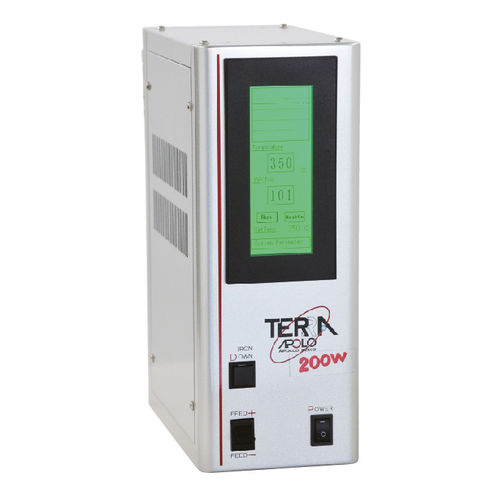

TERRA SOLDER CONTROLLER
The Terra has been designed exclusively for automatic soldering. 297 solder profiles can be customized to provide a solution for all types of soldering application challenges. The TERRA is equipped with a large color panel display which provides for easy reading and programming. Our 200 watt heater addresses the requirement to solder large thermal mass components and can feed a range of solder diameters between 0.04 mm to 1.6 mm. The Terra is normally configured with a robot to provide a highly functional system. Features include:

TOUCH INTERFACE
Soldering and soldering parameters can be entered from any keypad. Because this touch screen like the following error also can check the status of the device intuitively.

EXTENSIVE SOLDERING
Program to soldering (soldering) is 99 point type, slide 99 species, 297 species it is possible to store a total of 99 species of special solder.

EASY TO CONNECT A HOST DEVICE
Operation by touch alone, but also makes it easy to cooperate with IO signals robot and turntables. You can also easily synchronize multiple units also during operation.

Parameter Name	Parameter Value
Characteristics and options	touch screen
